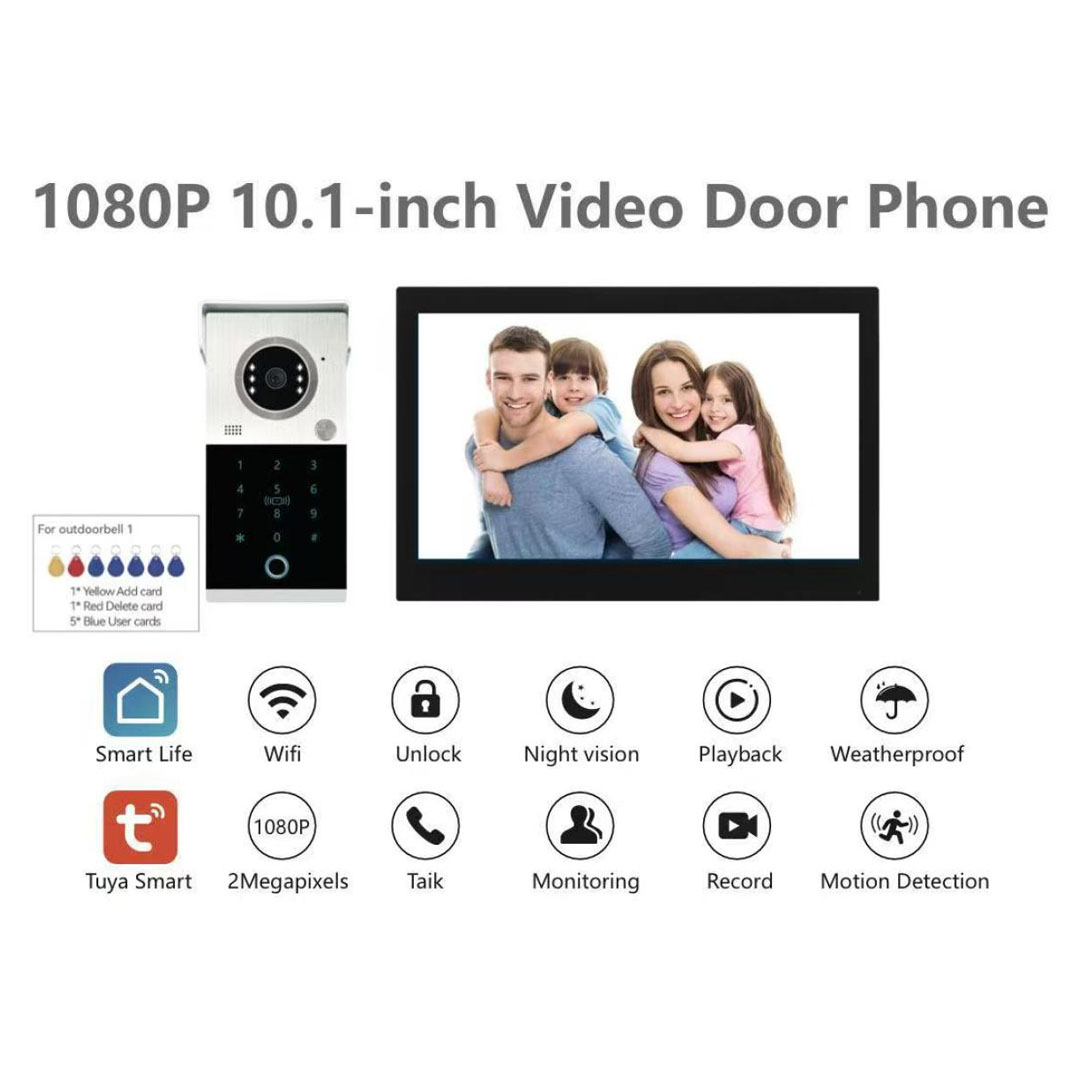

10.1 inch Keypad Video Door Intercom Kit – Infrared Night Vision, ID Card Access, 6-Bit Password

The GY-TA101B-HTZ1 is a 10.1-inch keypad video door intercom kit designed for reliable access control at offices and commercial premises. It combines infrared night vision, ID card swiping, and 6-bit password entry in a weather-resistant enclosure suitable for Jordan’s varied climate conditions.

Key Features

• Infrared night vision with an effective distance of 3–5 m for clear visibility after dark.
• ID card access supporting up to 1,000 cards, with a card reading distance of 20–50 mm and reading time under 1 second.
• 6-bit password entry for an additional layer of access security.
• Stores up to 1,000 groups of card swiping data onboard.
• Wide 90–120° viewing angle for broad door-area coverage.
• Optional fingerprint module supporting up to 200 fingerprints.
• Flat installation or wall-mounted installation options for flexible deployment.
• Aluminum alloy cover with ABS engineering plastic base for a robust, professional finish.

Technical Specifications

• Screen Size: 10.1 inches
• Power Supply: Connect to power supply
• Power Consumption: Standby: 0 W; Working: ≤ 2 W
• Camera: 30 W
• Night Vision: Infrared, 3–5 m range
• External Dimensions (incl. rain cover): 168 mm × 82 mm × 35 mm
• Product Weight: 300 g
• Working Temperature: -30°C to +60°C
• Working Humidity: 12% – 90%
• Password Length: 6-bit
• Card Type: ID card
• Number of ID Cards: Up to 1,000
• Card Reading Distance: 20–50 mm
• Card Reading Time: Less than 1 second
• Card Reading Current: Less than 50 mA
• Stored Card Data: Maximum 1,000 groups
• Viewing Angle: 90–120°
• Fingerprint Capacity (optional): 200 fingerprints
• Material: Aluminum alloy cover; ABS engineering plastic base
• Installation: Flat or wall-mounted
