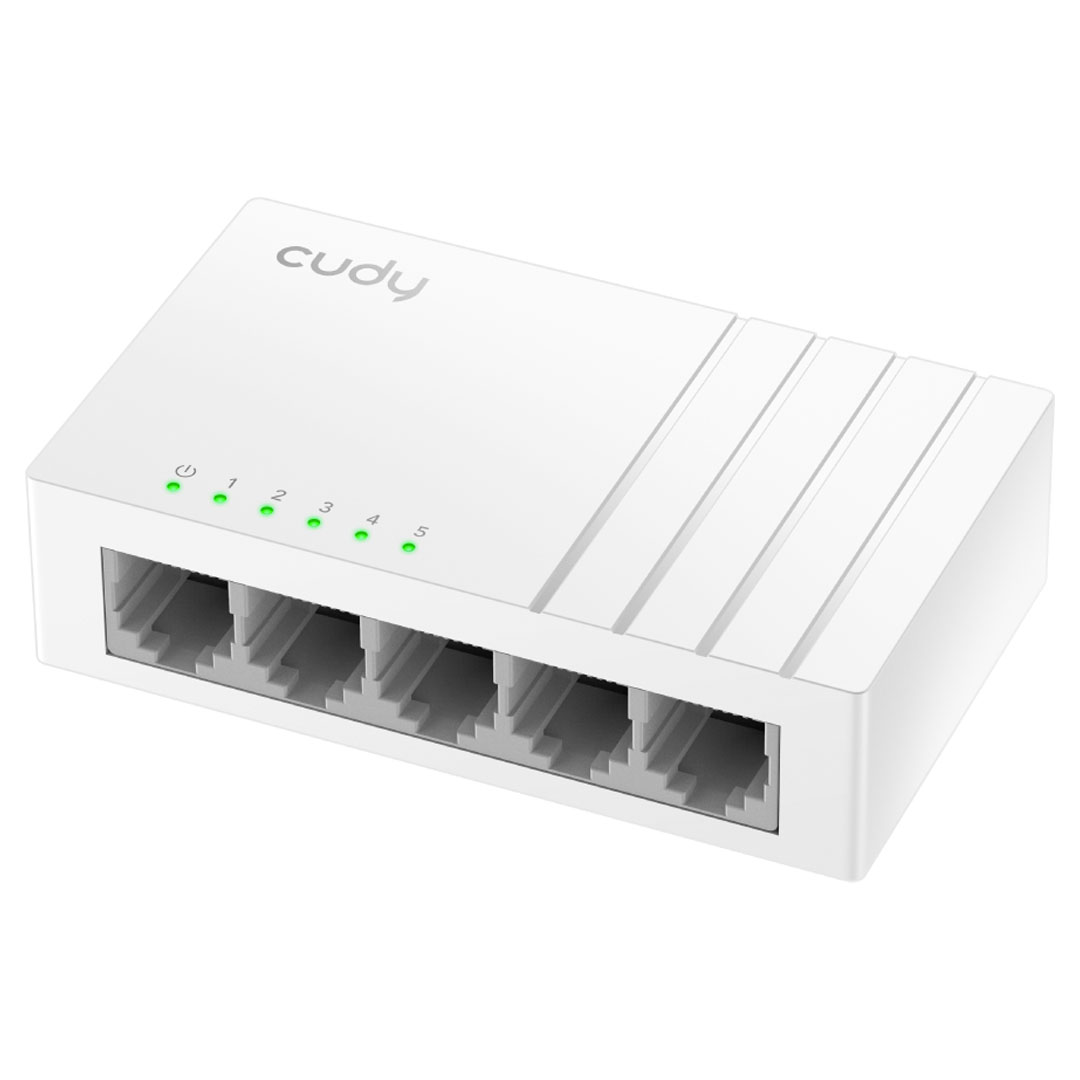

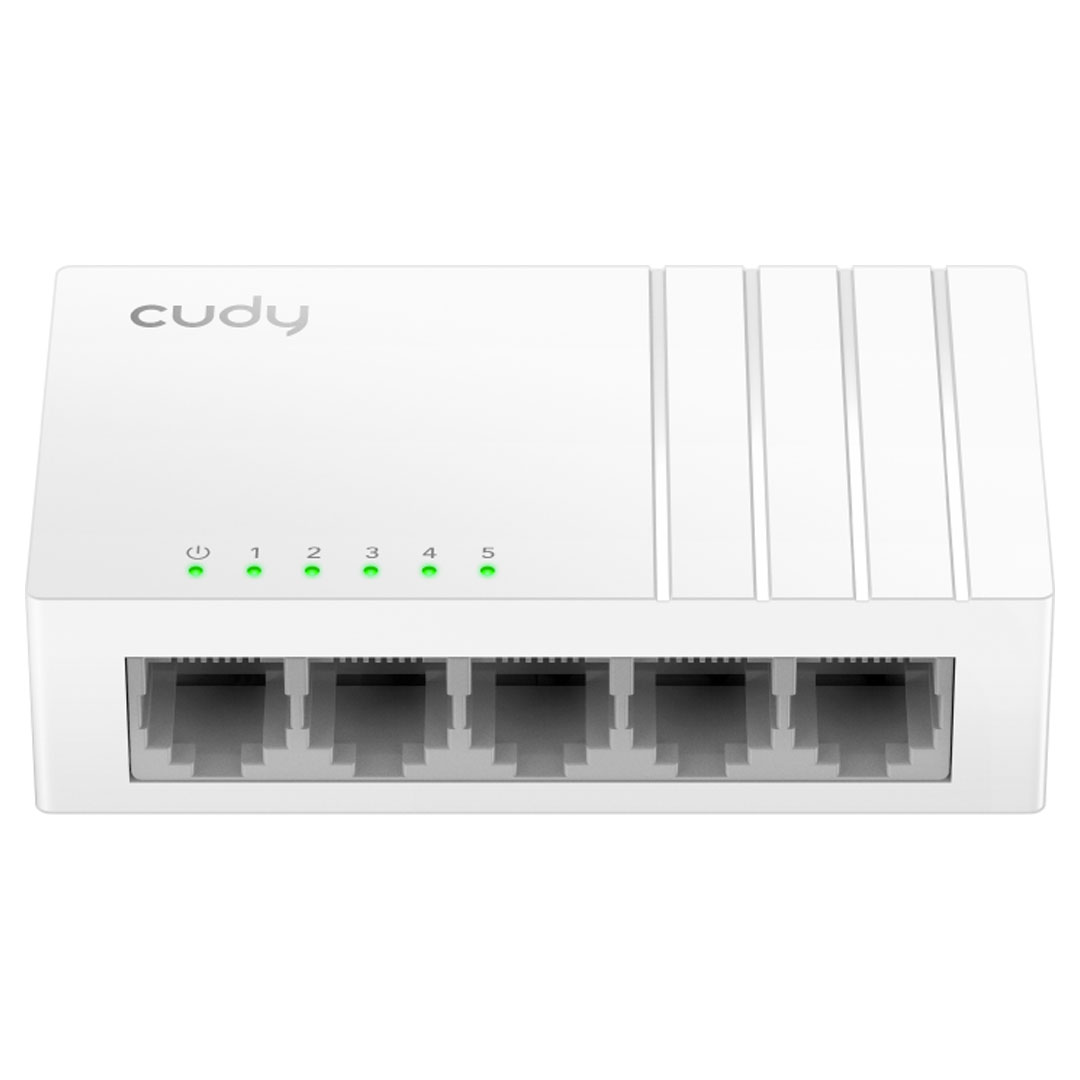

Cudy FS105D 5-Port 10/100 Mbps Unmanaged Switch

Cudy FS105D 5-Port 10/100 Mbps Unmanaged Switch - Image 2

Cudy FS105D 5-Port 10/100 Mbps Unmanaged Switch - Image 3

Cudy FS105D 5-Port 10/100 Mbps Unmanaged Switch

Name: Cudy FS105D 5-Port 10/100 Mbps Unmanaged Switch
Brand: Cudy
SKU: FS105D
Availability: InStock

Earn 1.00 Reward Points
10.00 JD

A space-saving 5-port Fast Ethernet switch with low power consumption, designed for expanding your wired network in home or office settings.

Key Features

5 Fast Ethernet Ports: Provides reliable 10/100 Mbps Ethernet connectivity for all your wired devices.
Energy-Efficient: Maximum power consumption of 0.9W, idle power consumption of 0.25W, making it ideal for power-conscious environments.
Compact Design: Measures just 88×52.5×24 mm, perfect for both desktop or wall-mount installations.
Networking Flexibility: Supports 10BASE-T and 100BASE-TX for flexible connectivity with different types of Ethernet cables.
Reliability: Features a robust build with environmental protections for temperature and humidity ranges.

In stock

SKU: FS105D Category: Switches

Scan QR Code
QR Code

Description

Cudy FS105D 5-Port 10/100 Mbps Unmanaged Switch
The Cudy FS105D is an efficient and compact 5-port unmanaged switch that delivers reliable Fast Ethernet connections for home and office networks. With support for 10/100 Mbps Ethernet speeds and a maximum switching capacity of 1 Gbps, it enables seamless networking. The device is optimized for energy savings, with a maximum power consumption of just 0.9W and idle power consumption of 0.25W. It supports a variety of 802.3 protocols and can be easily installed in both desktop and wall-mount positions, offering flexible installation options.

Key Features

5 Fast Ethernet Ports: Provides reliable 10/100 Mbps Ethernet connectivity for all your wired devices.
Energy-Efficient: Maximum power consumption of 0.9W, idle power consumption of 0.25W, making it ideal for power-conscious environments.
Compact Design: Measures just 88×52.5×24 mm, perfect for both desktop or wall-mount installations.
Networking Flexibility: Supports 10BASE-T and 100BASE-TX for flexible connectivity with different types of Ethernet cables.
Reliability: Features a robust build with environmental protections for temperature and humidity ranges.

Specifications

Model Version: FS105D 3.0
Interfaces: 5× 10/100 Mbps Fast Ethernet Ports
MAC Address Table: 512 entries
Max Switching Capacity: 1 Gbps
Packet Buffer: 448 Kbit
Power Input: DC 5V 0.55A
Max Power Consumption: 0.9W
Idle Power Consumption: 0.25W
Supported Protocols: IEEE 802.3i, IEEE 802.3u
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Dimensions: 88×52.5×24 mm (3.46×2.07×0.94 inches)
Weight: 50 g (1.76 oz.)
Casing Material: Plastic
Certifications: FCC, CE

More About This Item

Compact and efficient 5-port unmanaged switch designed for expanding wired networks in small offices or home environments.
Energy-efficient with minimal power consumption, ideal for long-term usage without adding significantly to your energy costs.
Supports both desktop and wall-mount installation for flexible placement in any space.
