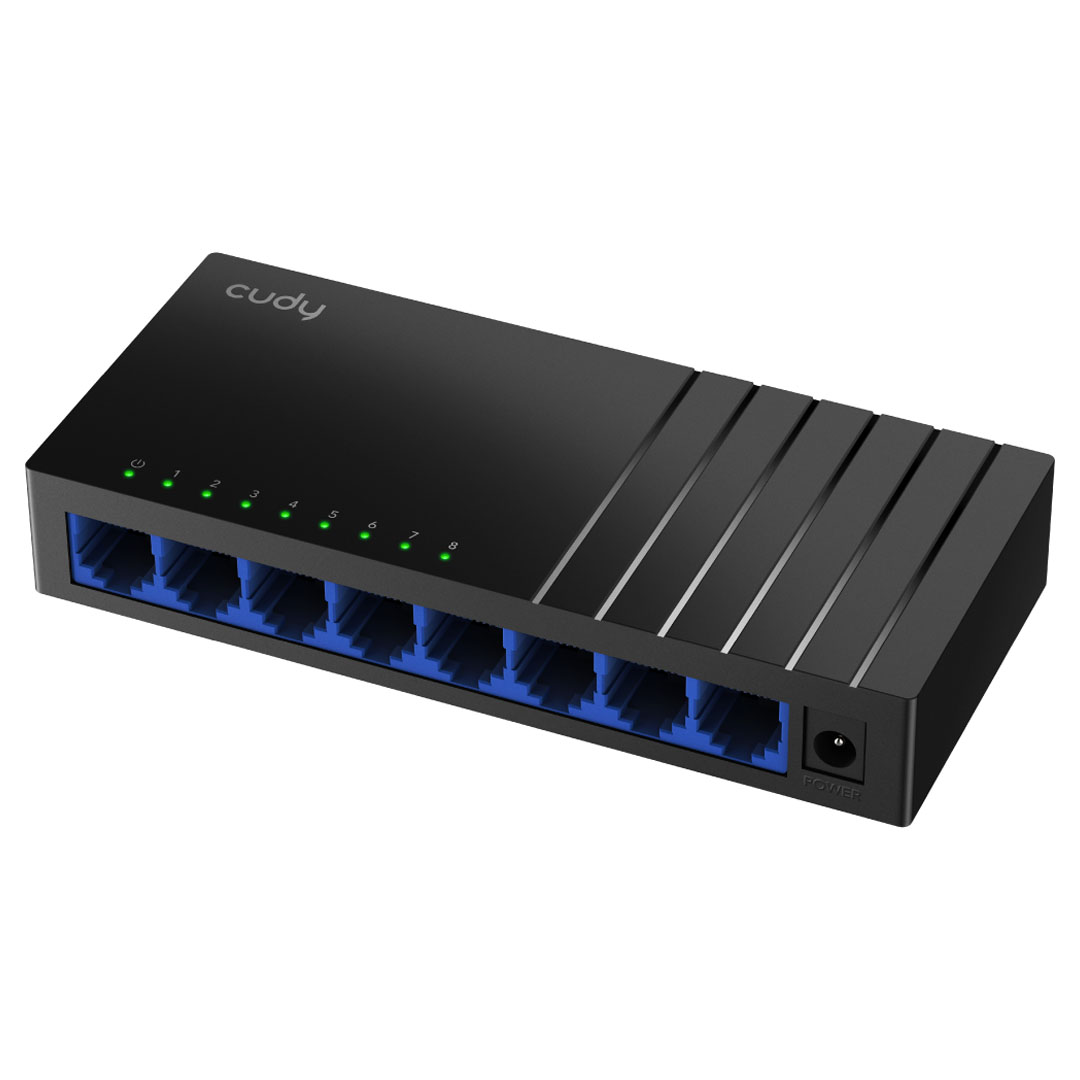

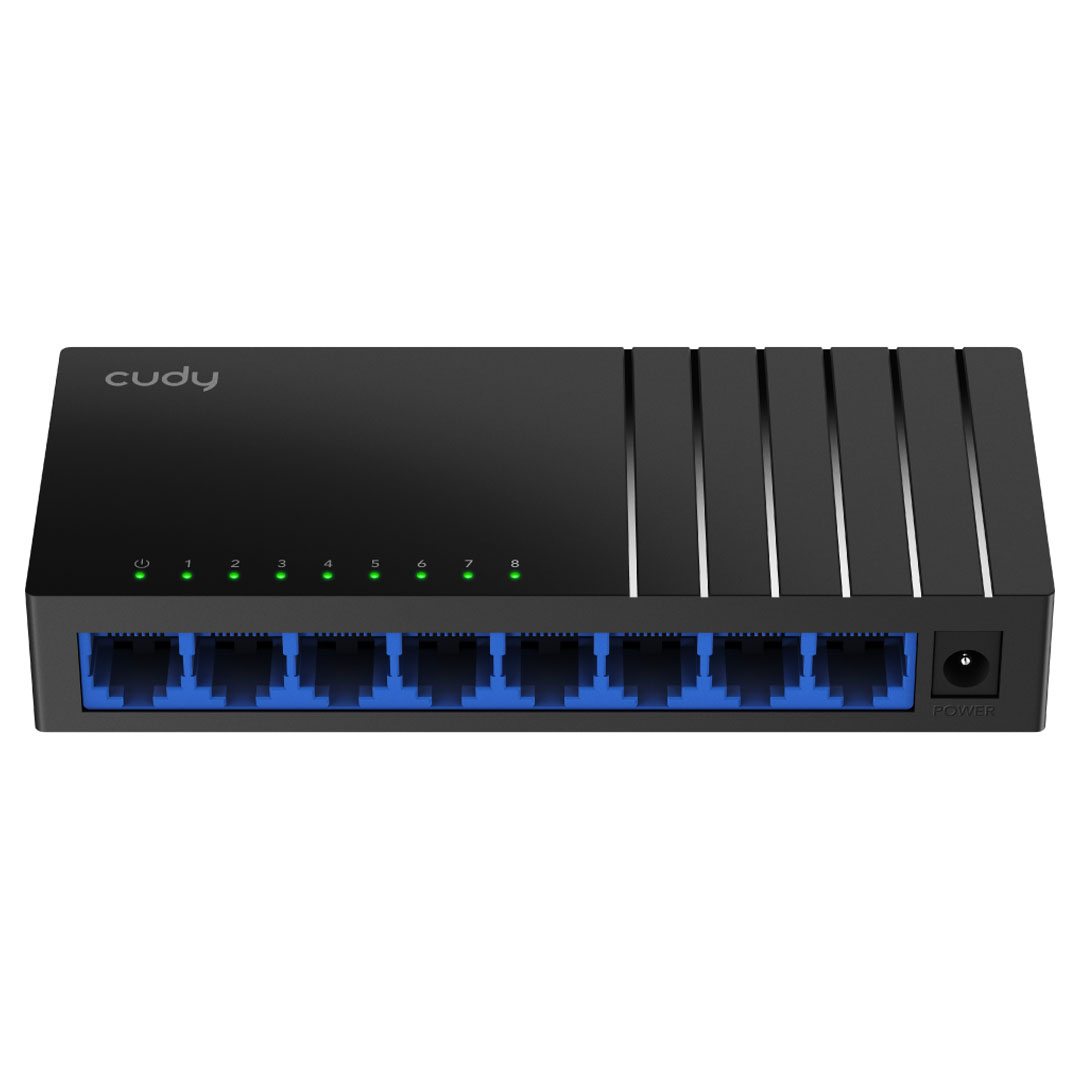

Cudy GS108D 8-Port Gigabit Unmanaged Switch

Name: Cudy GS108D 8-Port Gigabit Unmanaged Switch
Brand: Cudy
SKU: GS108D
Availability: InStock

Earn 1.80 Reward Points
18.00 JD

A high-speed 8-port Gigabit Ethernet switch with long-distance transmission capability and modern, space-saving design.

Key Features

8 Gigabit Ethernet Ports: Supports up to 1 Gbps per port for high-speed networking.
Long-Distance Transmission: Extends up to 170 meters with Cat. 5e or higher cables.
Energy-Efficient Design: Consumes only 2.75W at maximum load and 2.2W when idle.
Advanced Networking Features: Includes IGMP Snooping and loop prevention for enhanced performance.
Durable Build: Features lightning/surge protection (2kV) and ESD protection (Contact: 4kV, Air: 8kV).
Compact and Versatile: Measures 138×61.5×24 mm and supports desktop or wall-mounted setups.

SKU: GS108D Category: Switches

Description

Cudy GS108D 8-Port Gigabit Unmanaged Switch
The Cudy GS108D is an 8-port Gigabit Ethernet unmanaged switch designed for seamless networking in home and office environments. Offering speeds up to 1 Gbps per port, it supports long-distance transmission of up to 170 meters over Cat. 5e or higher cables. With a compact and lightweight design, it provides flexible installation options for both desktop and wall mounting. Featuring advanced energy-saving technology, it ensures reliable and efficient performance for a wide range of applications.

Key Features

8 Gigabit Ethernet Ports: Supports up to 1 Gbps per port for high-speed networking.
Long-Distance Transmission: Extends up to 170 meters with Cat. 5e or higher cables.
Energy-Efficient Design: Consumes only 2.75W at maximum load and 2.2W when idle.
Advanced Networking Features: Includes IGMP Snooping and loop prevention for enhanced performance.
Durable Build: Features lightning/surge protection (2kV) and ESD protection (Contact: 4kV, Air: 8kV).
Compact and Versatile: Measures 138×61.5×24 mm and supports desktop or wall-mounted setups.

Specifications

Model Version: GS108D 4.0
Interfaces: 8× Gigabit Ethernet Ports
MAC Address Table: 8192 entries
Max Switching Capacity: 16 Gbps
Packet Buffer: 4 Mbit
Jumbo Frame: 15 KB
Power Input: 5V 0.55A DC
Max Power Consumption: 2.75W
Idle Power Consumption: 2.2W
Supported Protocols: IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Dimensions: 138×61.5×24 mm (5.43×2.42×0.94 inches)
Weight: 89 g (3.14 oz.)
Casing Material: Plastic
Certifications: FCC, CE

More About This Item

Effortlessly expands wired network capacity with Gigabit speeds for every port.
Long-distance transmission ensures reliable connections for large setups.
Compact and lightweight design fits into any workspace or mounting option.
Supports advanced networking features like IGMP Snooping and loop prevention for optimized traffic management.
