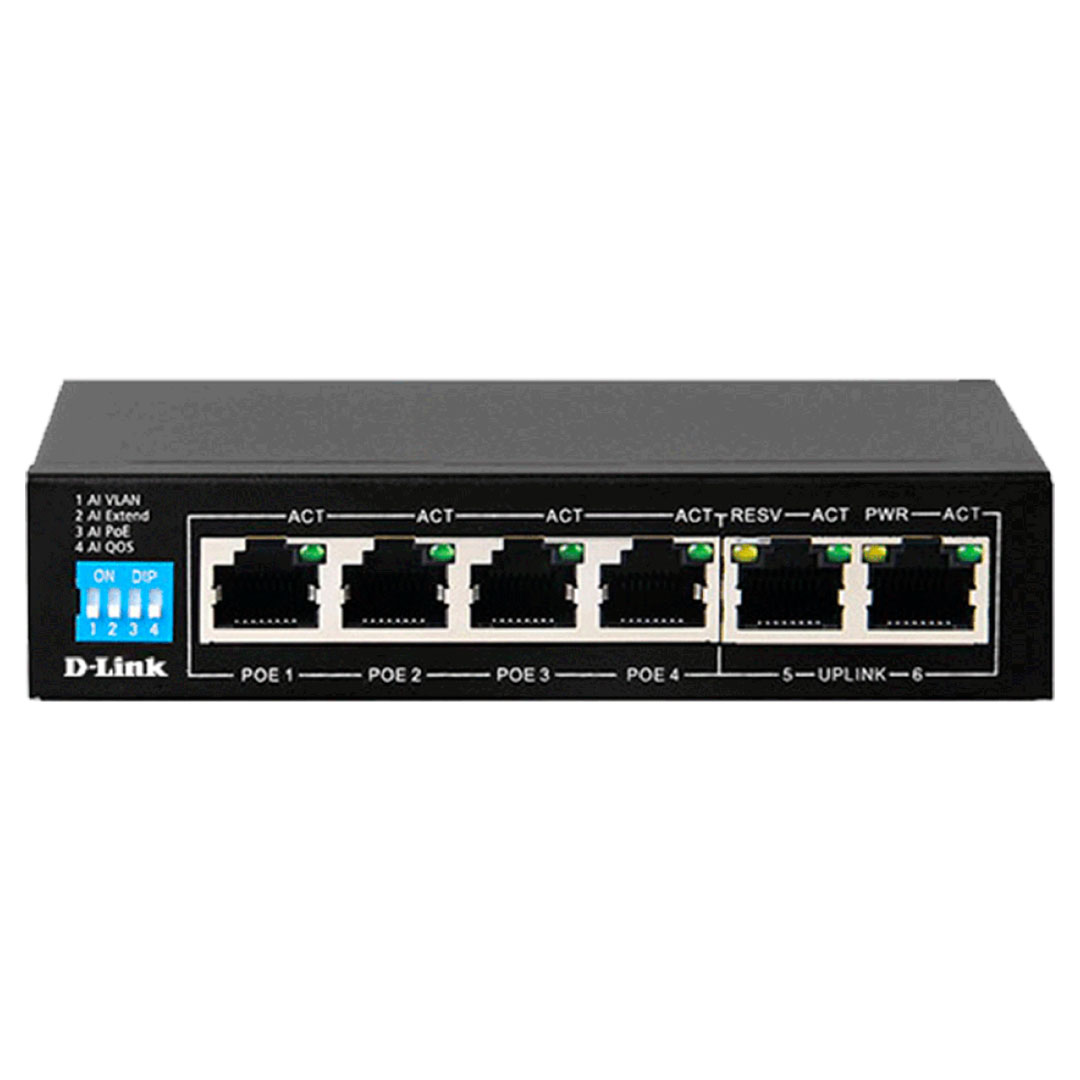

D-Link DES-F1006P-E/E 6-Port Switch – PoE, 1.2 Gbps, Surge Protection

The D-Link DES-F1006P-E/E is a compact 6-port Fast Ethernet switch with integrated PoE support designed for small to medium networks. It combines a 60W power budget, surge protection, and QoS capabilities in one unit, making it a straightforward choice for connecting and powering your devices. Operating between 0 and 40°C, it suits a range of environments.

Key Features

• Four PoE ports compliant with IEEE 802.3af and 802.3at, delivering up to 36W per port and a 60W total power budget.
• 1.2 Gbps switching capacity for simultaneous data transfer across all ports.
• Two dedicated 10/100 Mbps uplink ports for connecting to your core network infrastructure.
• Flow control and QoS prioritize critical traffic and protect against packet loss.
• 6kV surge protection guards your connected equipment against electrical spikes.
• Maximum transmission distance of 250m to support distributed layouts.
• Operating temperature range: 0 to 40°C.

Specifications

• Switching Capacity: 1.2 Gbps
• Number of Ports: 6 (4 PoE + 2 Uplink)
• Port Speed: 10/100 Mbps Fast Ethernet
• PoE Power Budget: 60W total (36W max per port)
• Packet Filtering/Forwarding: 14,800 pps (10M) / 148,800 pps (100M)
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, ANSI/IEEE 802.3 NWay
• Operating Temperature: 0 to 40°C
• Warranty: 1 Year
