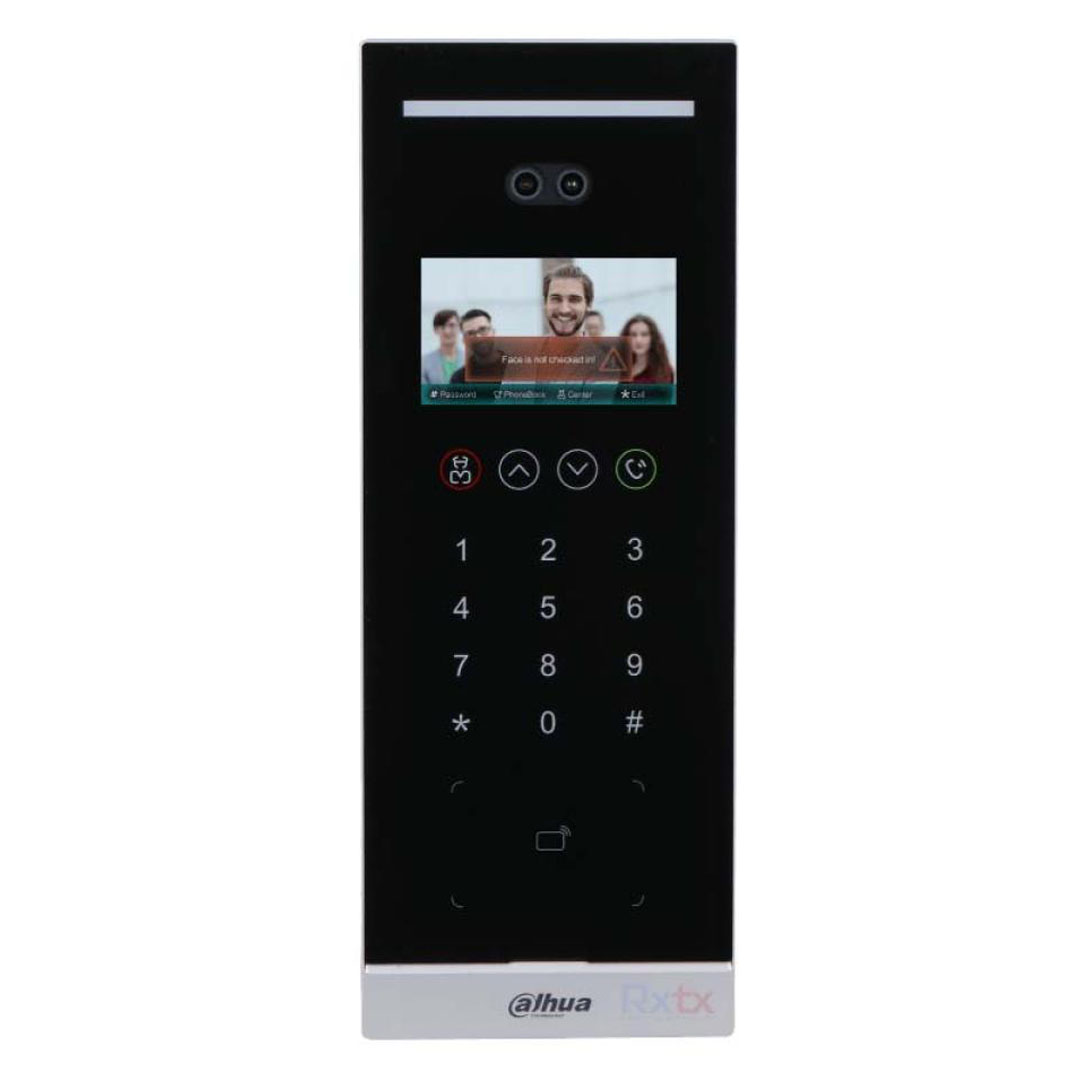

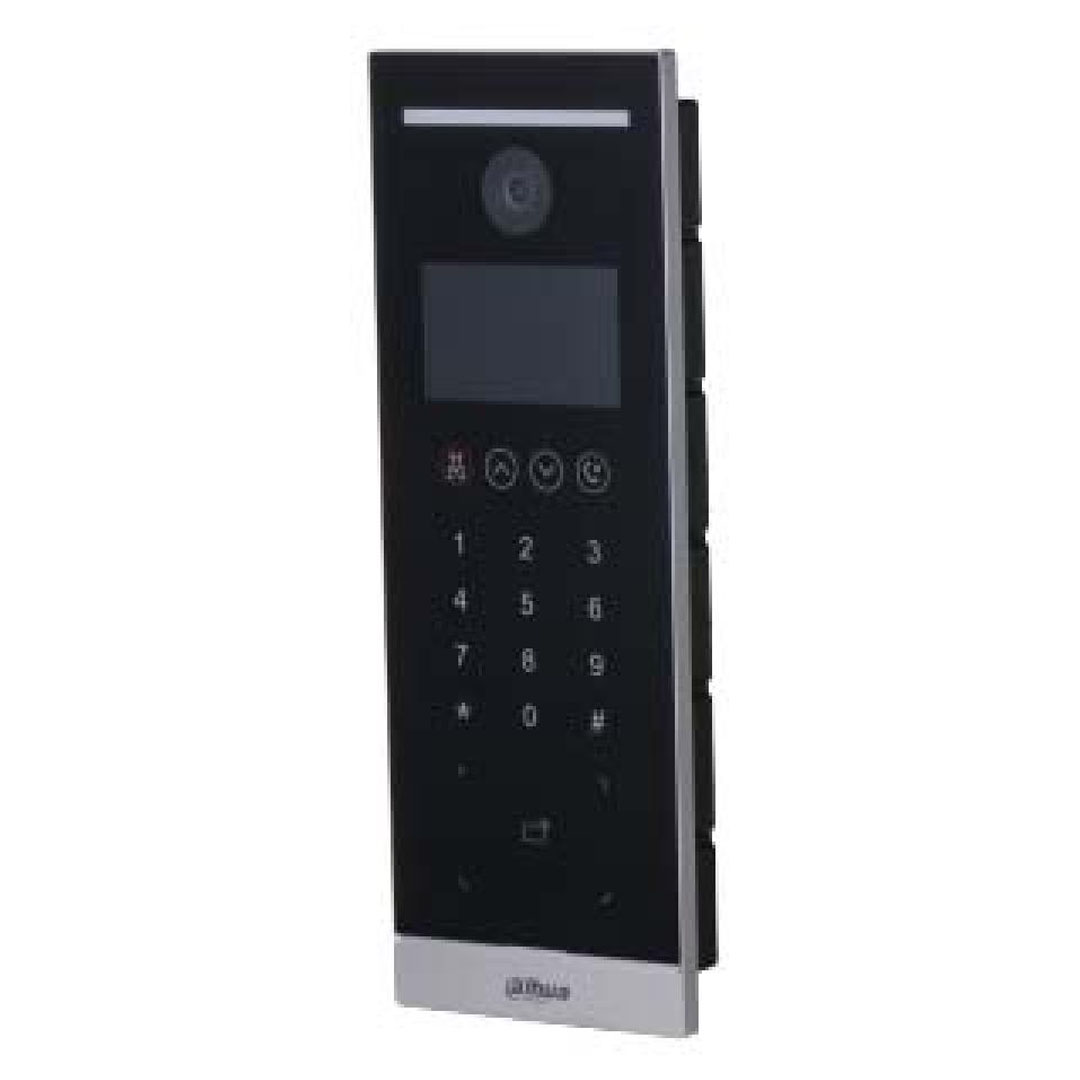

Dahua IP Face Recognition Apartment Door Station – 4.3″ IPS, 2MP, IP65, 0.2s Face Recognition

The Dahua VTO6531H is an IP-based face recognition door station designed for apartment buildings, combining a clear 4.3-inch IPS touchscreen with fast, reliable access control. Supporting up to 20,000 users, 10,000 face images, and 10,000 cards, it is a robust solution for multi-tenant residential or commercial properties in Jordan.

Key Features

• 4.3-inch IPS display with 800×480 screen resolution for crisp, clear interaction.
• 2MP CMOS camera with true WDR for accurate image capture in varying lighting conditions.
• Face recognition speed of 0.2 seconds per person, with liveness detection to prevent spoofing.
• Multiple unlock modes: face unlock, password unlock, IC card unlock, and remote unlock.
• Supports up to 20,000 users, 10,000 face images, and 10,000 cards.
• Auto light illumination that reduces light pollution in low-light environments.
• Duress alarm, tamper alarm, and door sensor timeout alarm for enhanced security.
• Supports full duplex communication, SIP server, management platform, and voice calls via APP.
• Various unlock status display modes to protect user privacy.

Technical Specifications

• Display: 4.3-inch IPS, 800×480 resolution
• Camera: 2MP CMOS, true WDR
• Face-camera distance: 0.3 m – 2 m
• Supported human height range: 1.1 m – 2.4 m (lens-to-ground distance: 1.4 m)
• Touch button interface
• Ingress protection: IP65
• Operating temperature: -30°C to +60°C
• Capacity: 20,000 users, 10,000 face images, 10,000 cards
• Face recognition speed: 0.2 second per person
• Communication: Full duplex, SIP server support, APP voice call
• Model: DHI-VTO6531H
