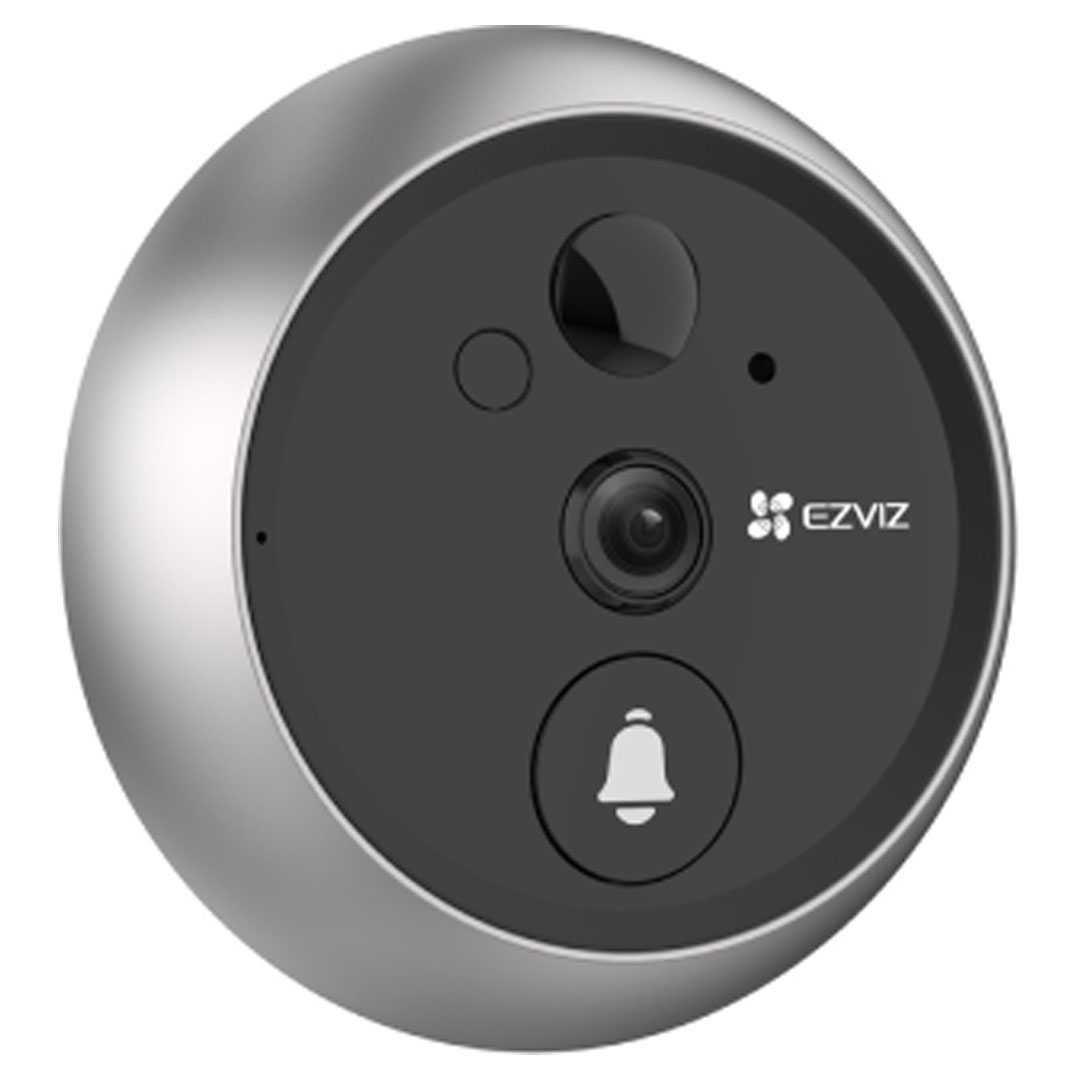

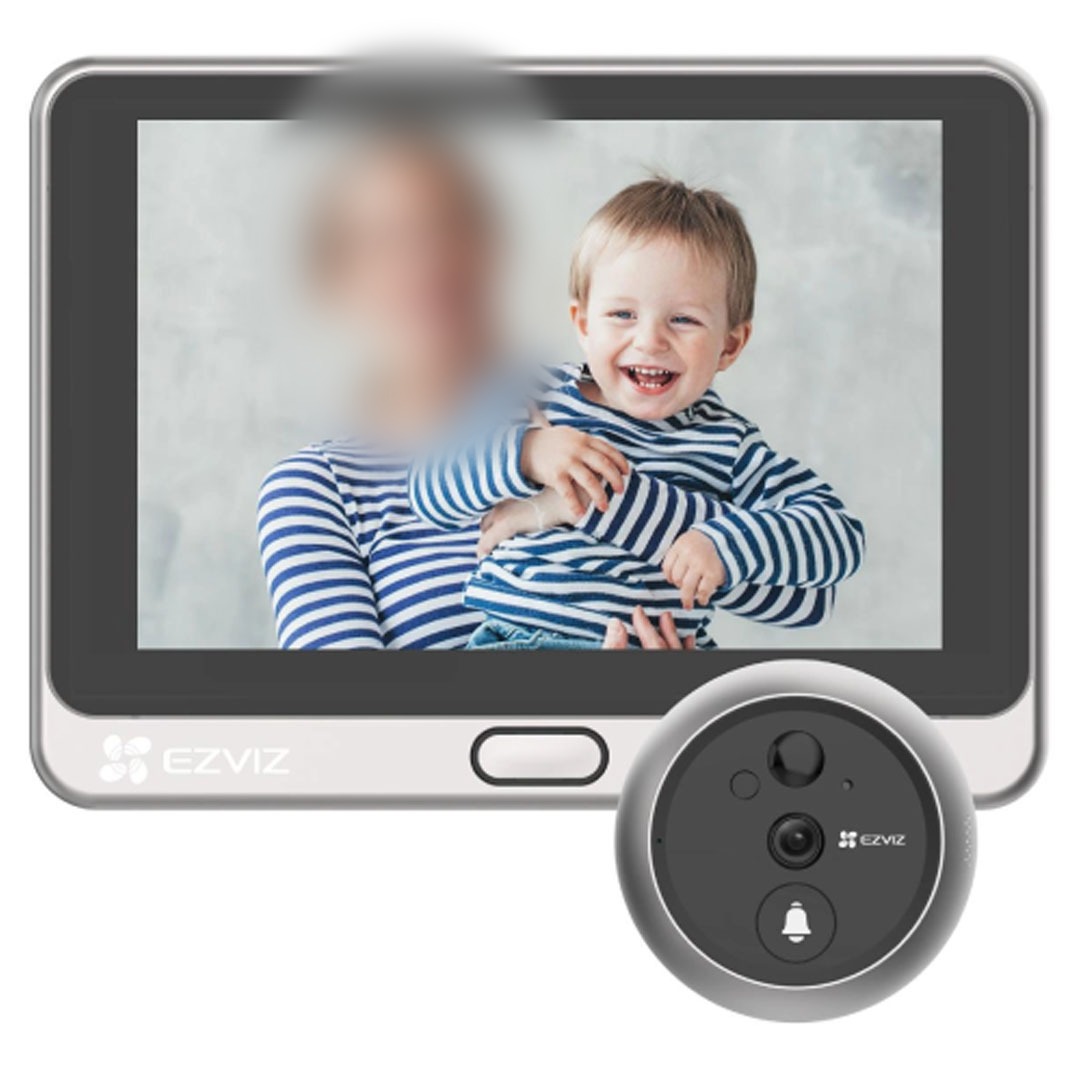

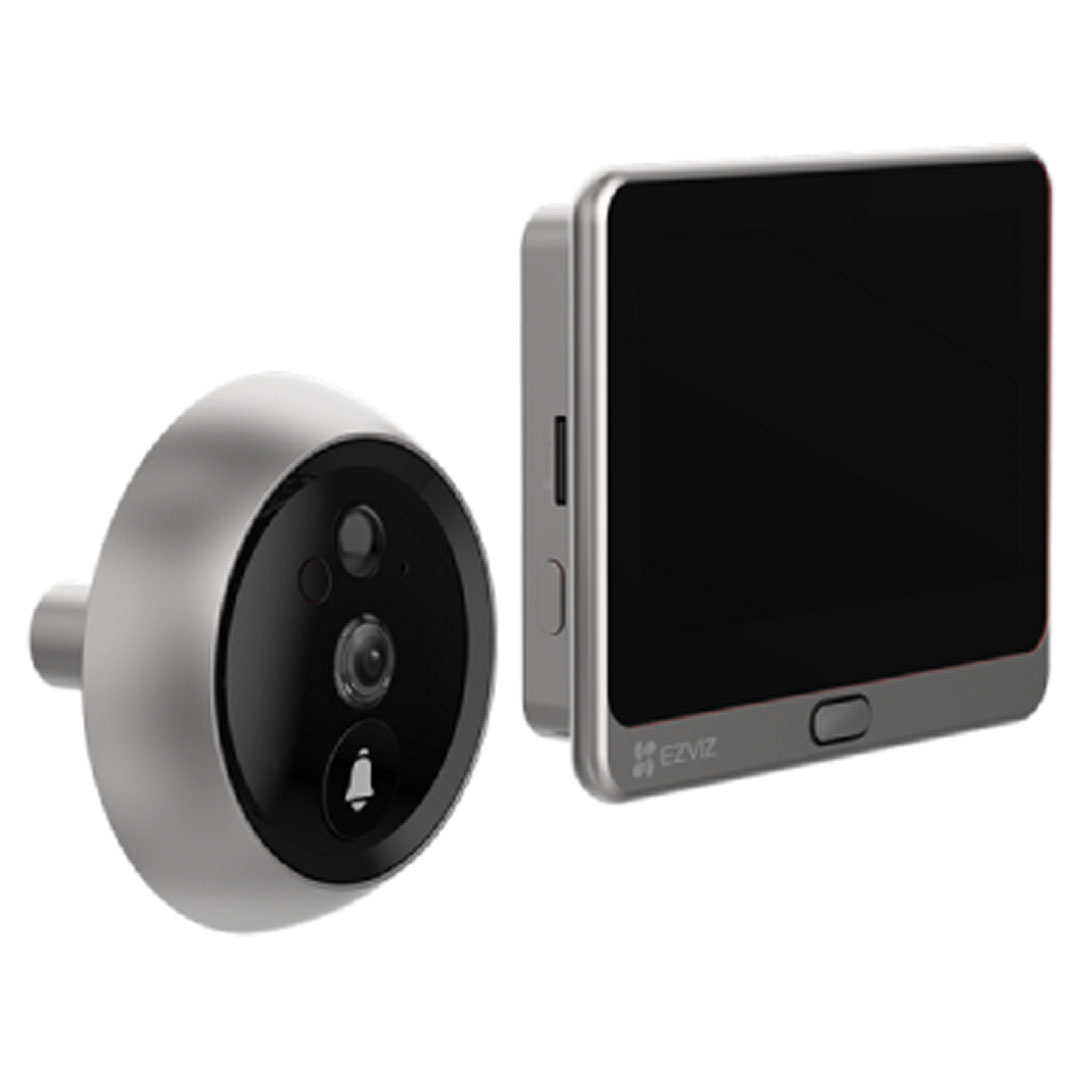

EZVIZ DP2 2K Wire-Free Peephole Doorbell – 4.3″ Touch Screen, 166° Wide View, Smart PIR Detection

The EZVIZ DP2 2K Peephole Doorbell delivers clear 2K / 3MP video through a 166° ultra-wide lens, all managed via a convenient 4.3-inch color touch screen. With advanced PIR motion detection, IR night vision, and local or remote video intercom, it is a practical smart security solution for homes and offices across Jordan. Hard-wired for continuous power, it integrates seamlessly into modern smart home setups.

Key Features

• 2K / 3MP resolution with a 1/2.7″ Progressive Scan CMOS image sensor for sharp, detailed video.
• 166° diagonal ultra-wide viewing angle (136° horizontal, 80° vertical) minimises blind spots at your door.

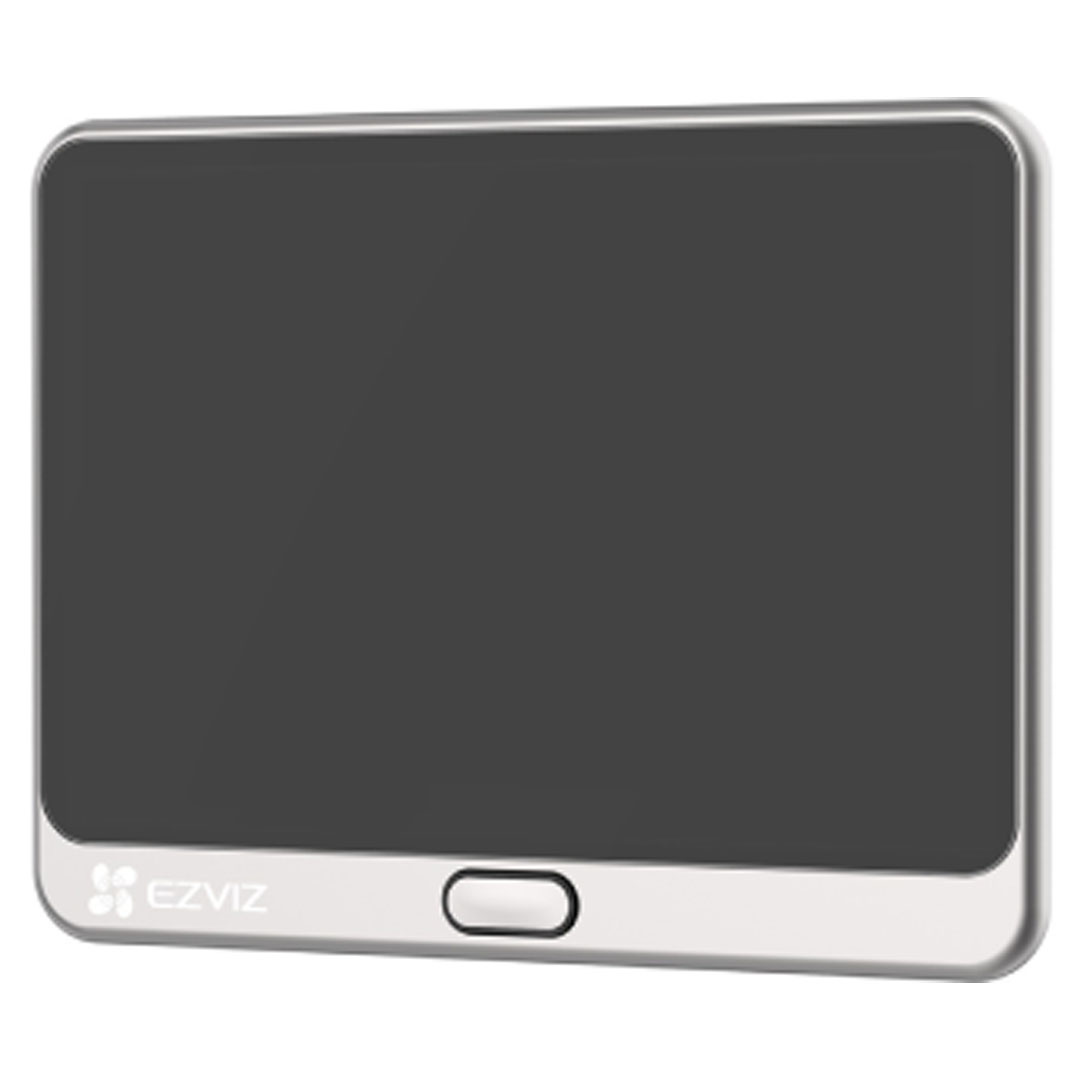

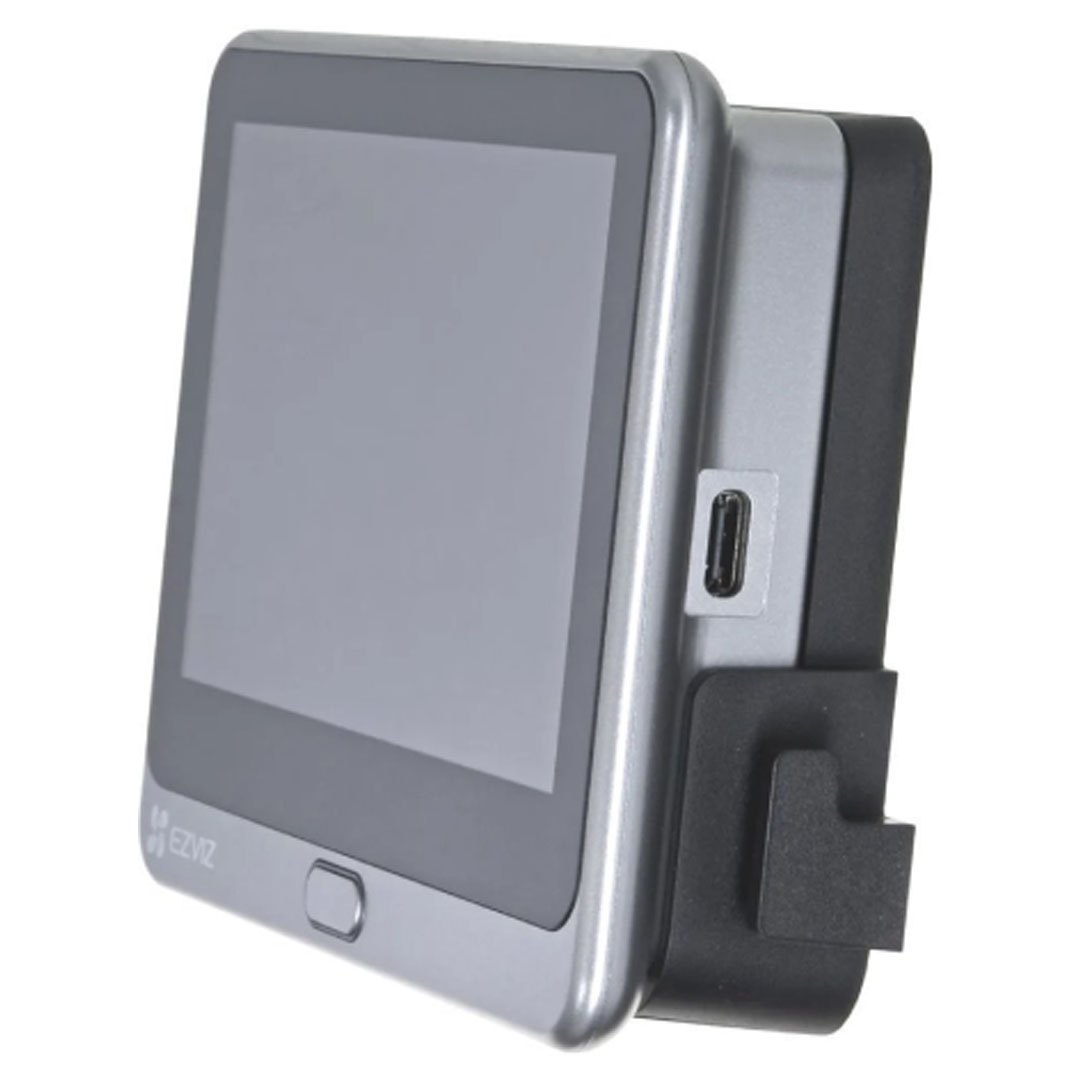

• 4.3-inch color touch screen with doorbell, power, and screen wake-up buttons for easy on-device control.
• Advanced PIR motion detection with a 110° angle, up to 6 m / 20 ft range, and adjustable sensitivity.
• IR night vision with a range of up to 5 m / 16.4 ft for reliable low-light monitoring.
• Supports MicroSD cards up to 512 GB for local storage, plus EZVIZ CloudPlay (subscription required) for cloud backup.
• Local and remote video intercom via Wi-Fi (2.4 GHz, IEEE 802.11b/g/n) and the EZVIZ app.

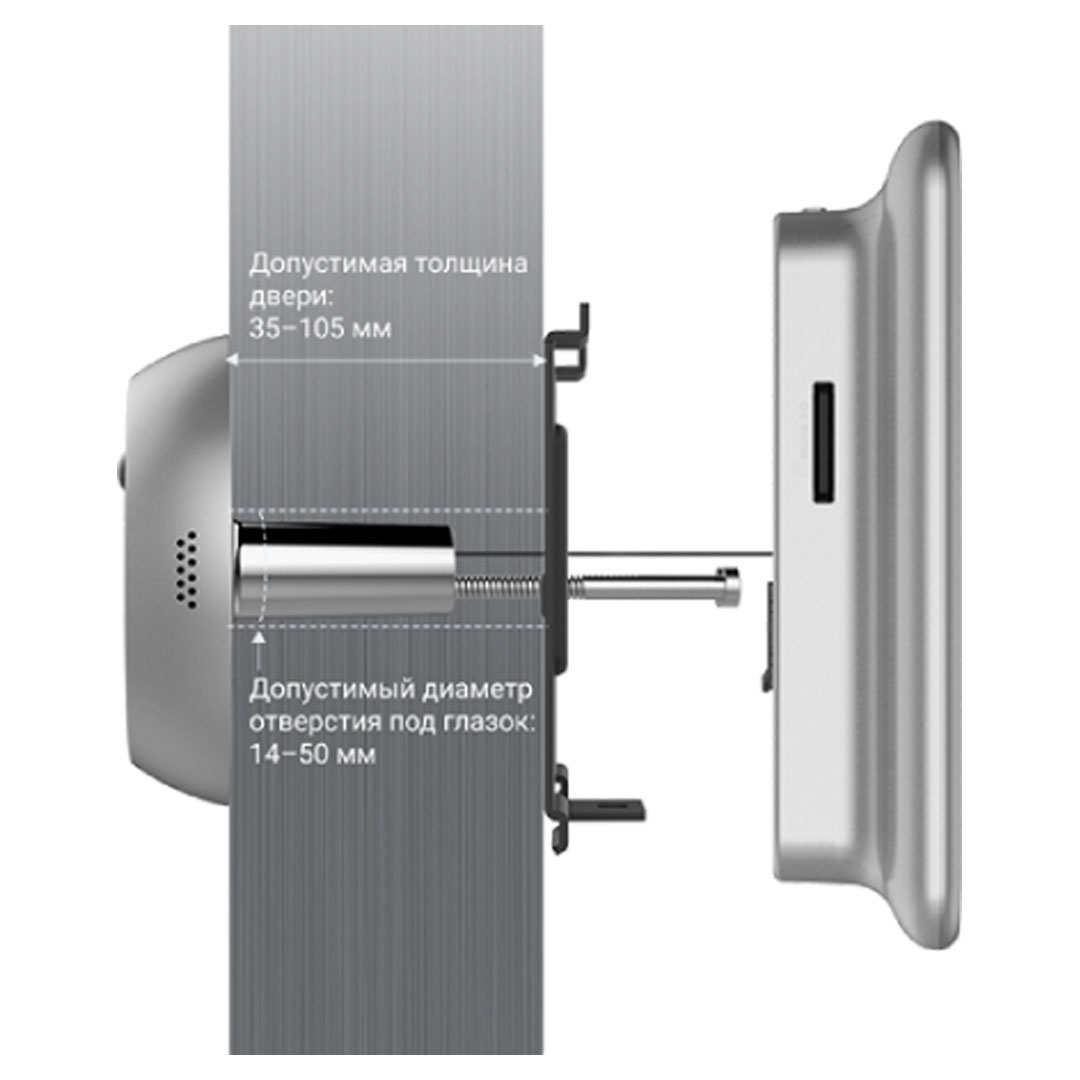

• Compatible with peephole diameters of 14–50 mm and door thicknesses of 35–105 mm.

Technical Specifications

• Screen: 4.3-inch Color Touch Screen
• Color: Silver

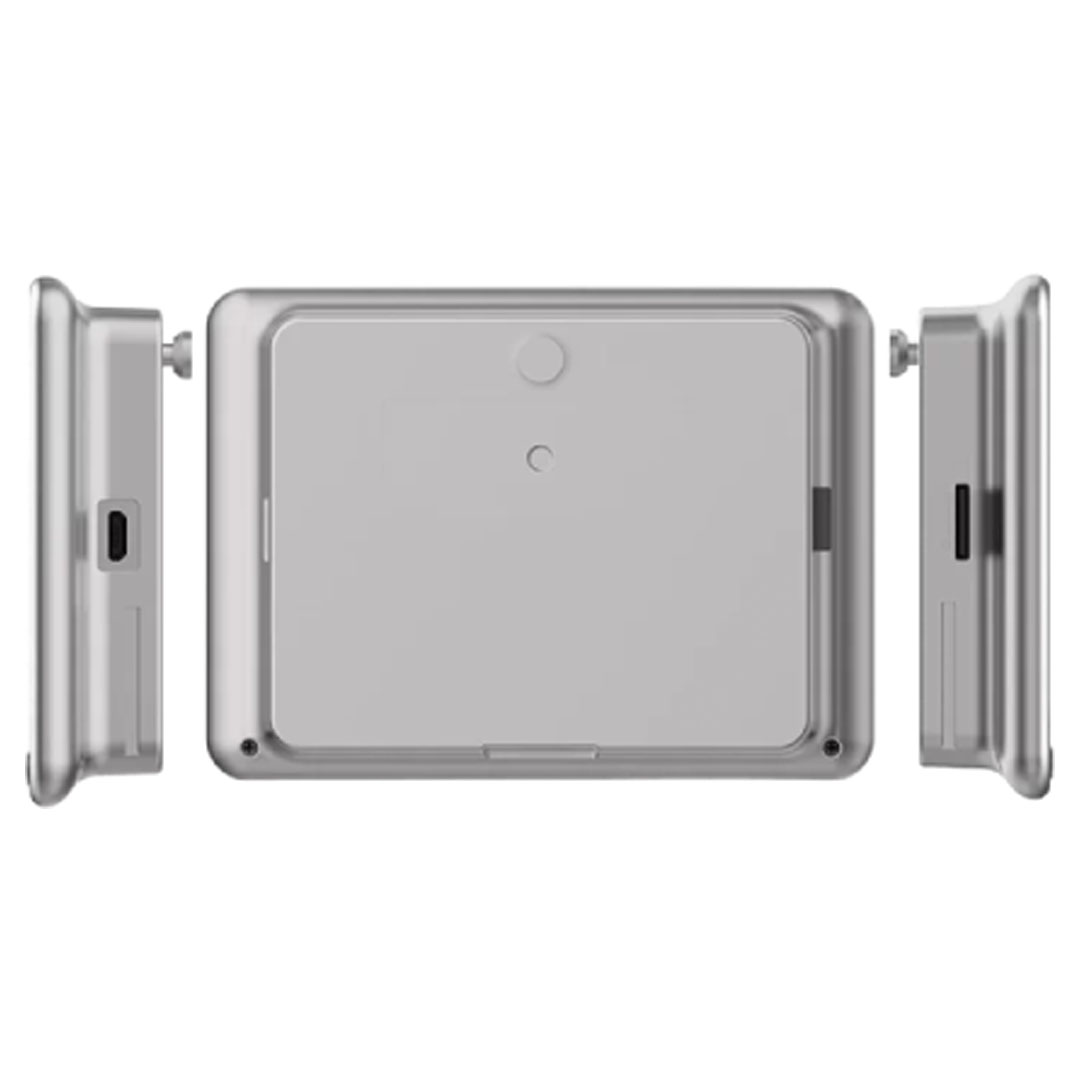

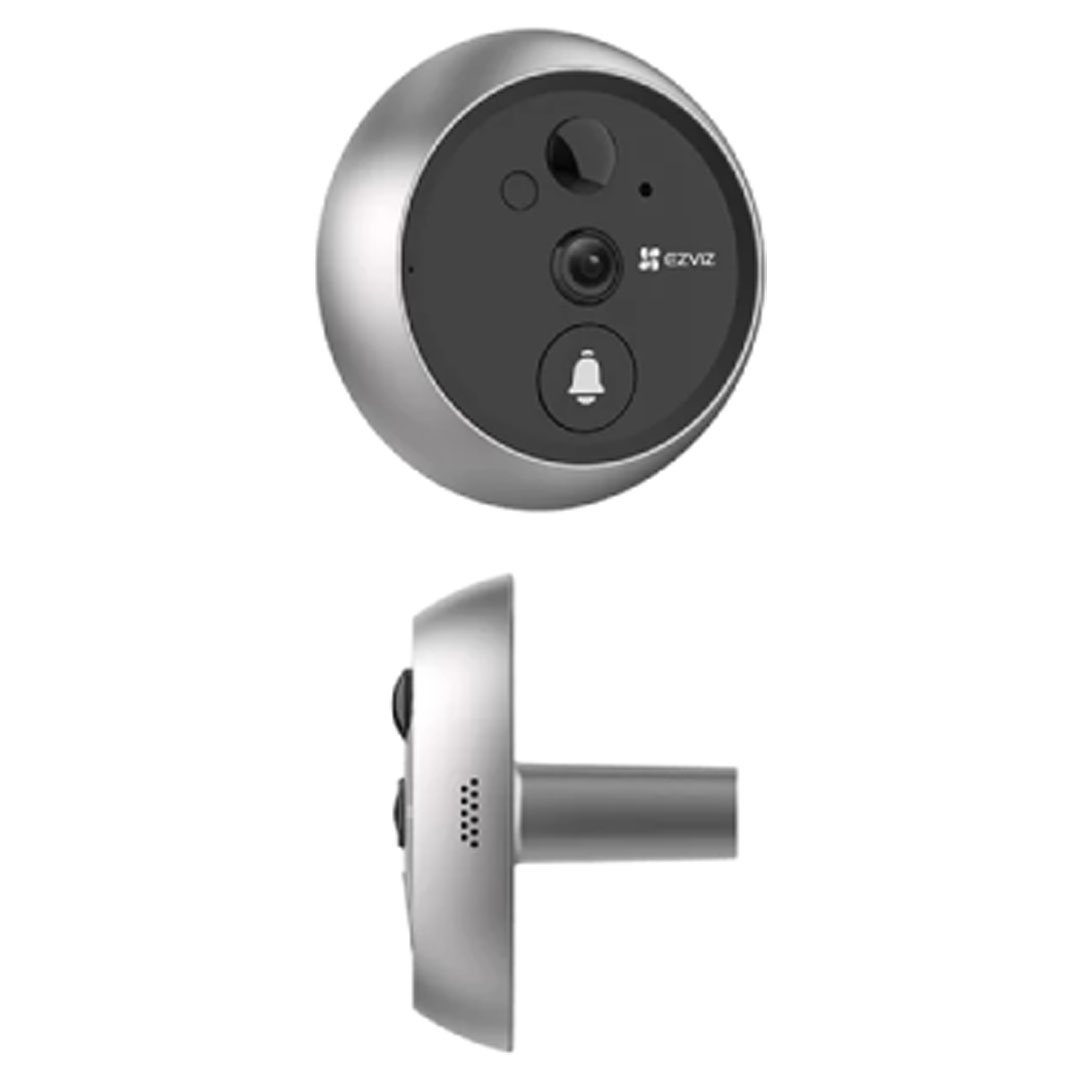

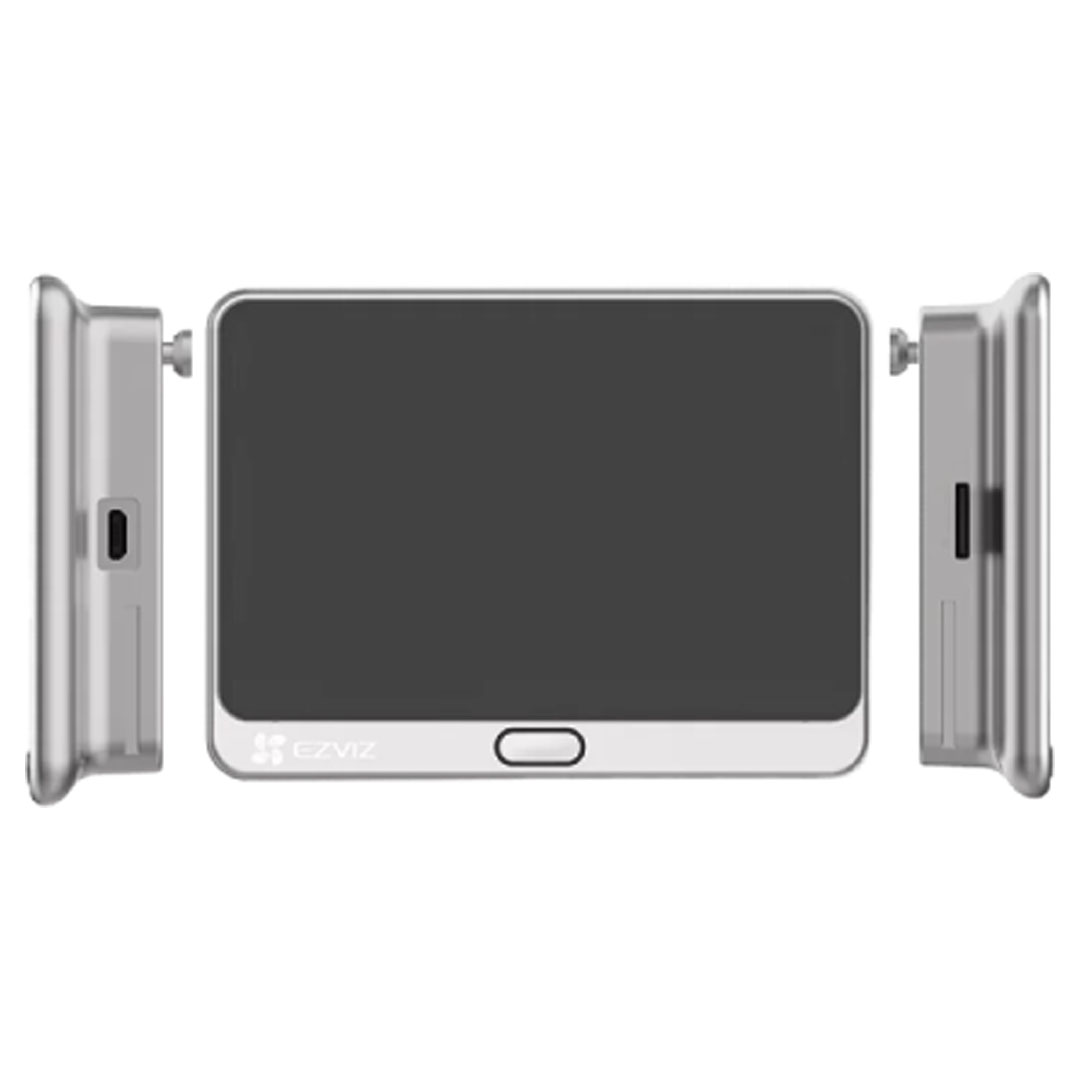

• Dimensions – Screen and Base: 115.5 × 85.5 × 24.5 mm; Camera: 71 × 71 × 48.3 mm
• Weight: 320 g (product); 595 g (with package)
• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Lens: 2.0 mm @ F2.0
• Max. Resolution: 2K / 3MP
• Viewing Angle: 166° Diagonal, 136° Horizontal, 80° Vertical
• Video Frame Rate: 15 fps
• WDR: DWDR
• Day/Night Switch: ICR Infrared Filter
• IR Night Vision Distance: Up to 5 m / 16.4 ft
• Audio Input: Built-in high-sensitivity microphone
• Audio Output: Built-in high-power speaker
• Ringtones: Up to 5 (volume adjustable)
• PIR Detection Angle: 110°; Distance: Up to 6 m / 20 ft; Sensitivity: Adjustable
• Image Distortion Correction: Supported
• Local Storage: MicroSD card up to 512 GB
• Cloud Storage: EZVIZ CloudPlay (subscription required)
• Wi-Fi Standard: IEEE 802.11b/g/n, 2.4 GHz
• Wi-Fi Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
• Wiring: Hard-wired
• Power Supply: DC 5V ±10%
• Max. Power Consumption: 2.2 W
• Supported Peephole Diameter: 14–50 mm
• Supported Door Thickness: 35–105 mm
• Operating Conditions: -10°C to 45°C, Humidity 95% or less (non-condensing)
• Certifications: CE / REACH / WEEE / RoHS / UKCA

In the Box

• DP2 2K Peephole Doorbell
• Panel
• Mounting Base
• Base Cover
• Buckle
• Screws ×6
• Power Cable
• Regulatory Information
• Quick Start Guide
