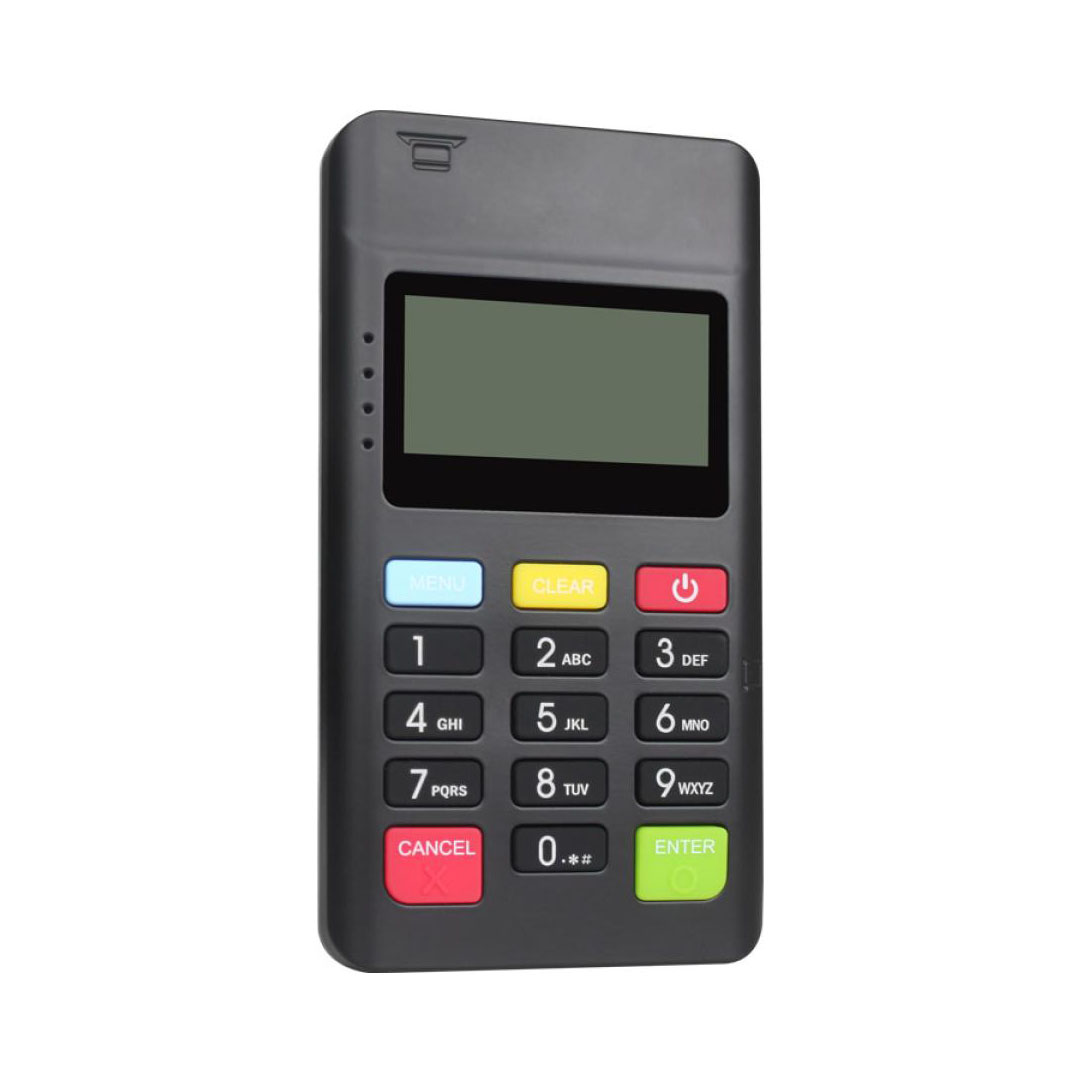

HAING Z70 mPOS Chip Reader – Magnetic, IC & Contactless, BLE/SPP, iOS & Android

The HAING Z70 is a compact mPOS chip reader designed for mobile payment acceptance on iOS and Android devices. Supporting magnetic stripe, IC card, and contactless payment methods, it offers broad compatibility for retail and service businesses in Jordan seeking a flexible, secure payment solution. Its dual-mode Bluetooth communication and robust encryption make it a reliable choice for on-the-go transactions.

Key Features

• Reads magnetic cards on tracks 1, 2, and 3 with bidirectional swipe, compliant with ISO 7811.
• Supports IC card reading per ISO 7816 standard.
• Contactless card reader compatible with ISO/IEC 14443 Type A & B, Mifare, and Felica cards; compliant with EMV/qPBOC and PAYPASS requirements.
• Dual-mode Bluetooth communication supporting BLE and SPP protocols, compatible with iOS and Android 2.3 or higher.
• Multiple encryption algorithms: DES, 3DES, RSA, SHA-256, AES, and more.
• 1.77-inch TFT screen (128×64 resolution) for on-device display.
• Auto power-off after 5 minutes without operation to conserve battery.
• Micro USB port for charging and connectivity.

Technical Specifications

• CPU: Security Chip
• Model: Z70
• Display: 1.77-inch TFT screen (128×64)
• Magnetic Card: 1/2/3 track, bidirectional swipe, ISO 7811
• IC Card: ISO 7816
• Contactless: ISO/IEC 14443 Type A & B, Mifare, Felica; EMV/qPBOC, PAYPASS compliant
• USB Interface: Micro USB ×1
• Communication: BLE protocol, SPP protocol; compatible with iOS and Android 2.3+
• Encryption: DES, 3DES, RSA, SHA-256, AES, etc.
• Battery: Lithium polymer rechargeable, 3.7V, 200mAh
• Operating Current: 50mA–90mA
• Standby Current: 31mA–45mA
• Adapter: 5V 80mA
• Dimensions: 111mm × 59mm × 13.2mm
