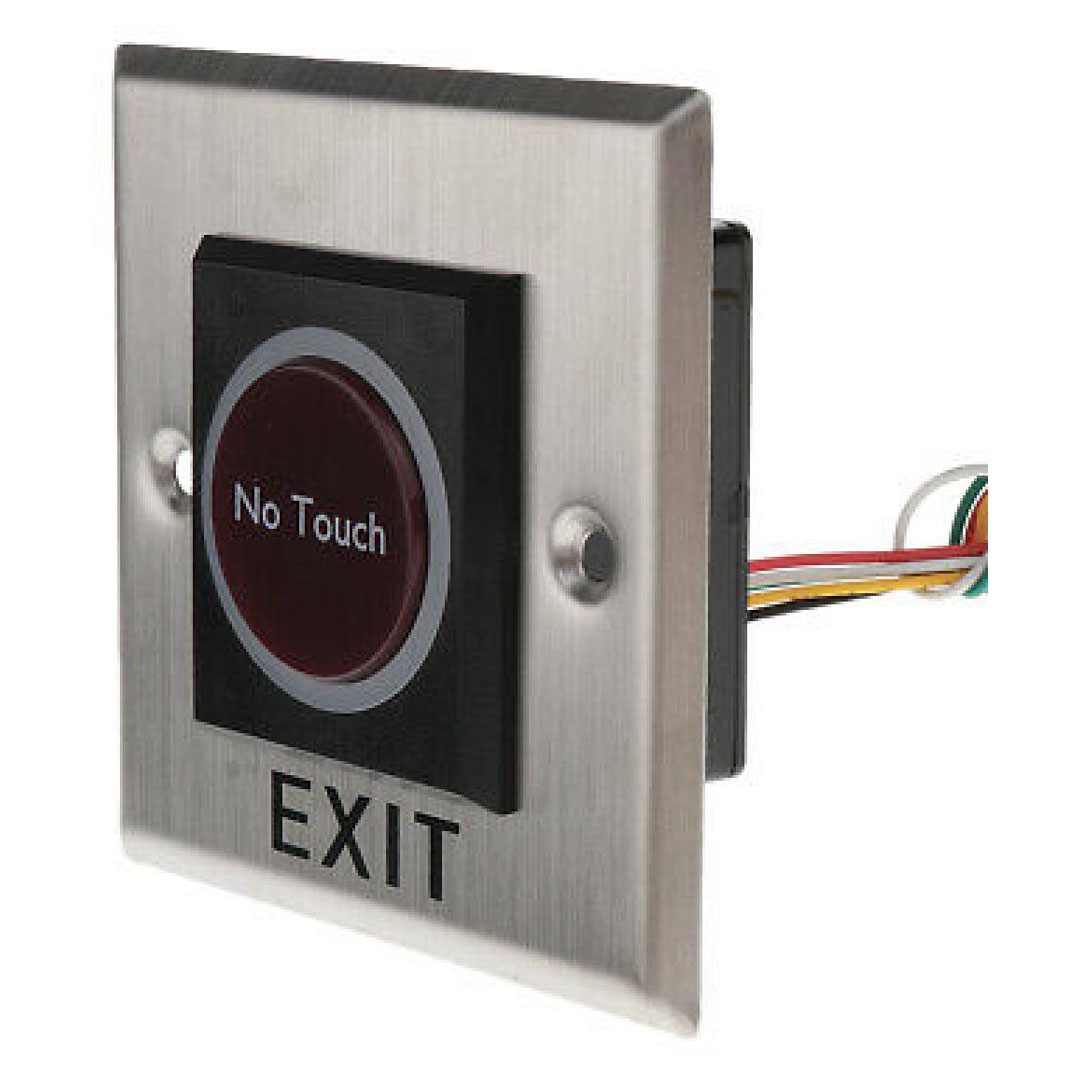

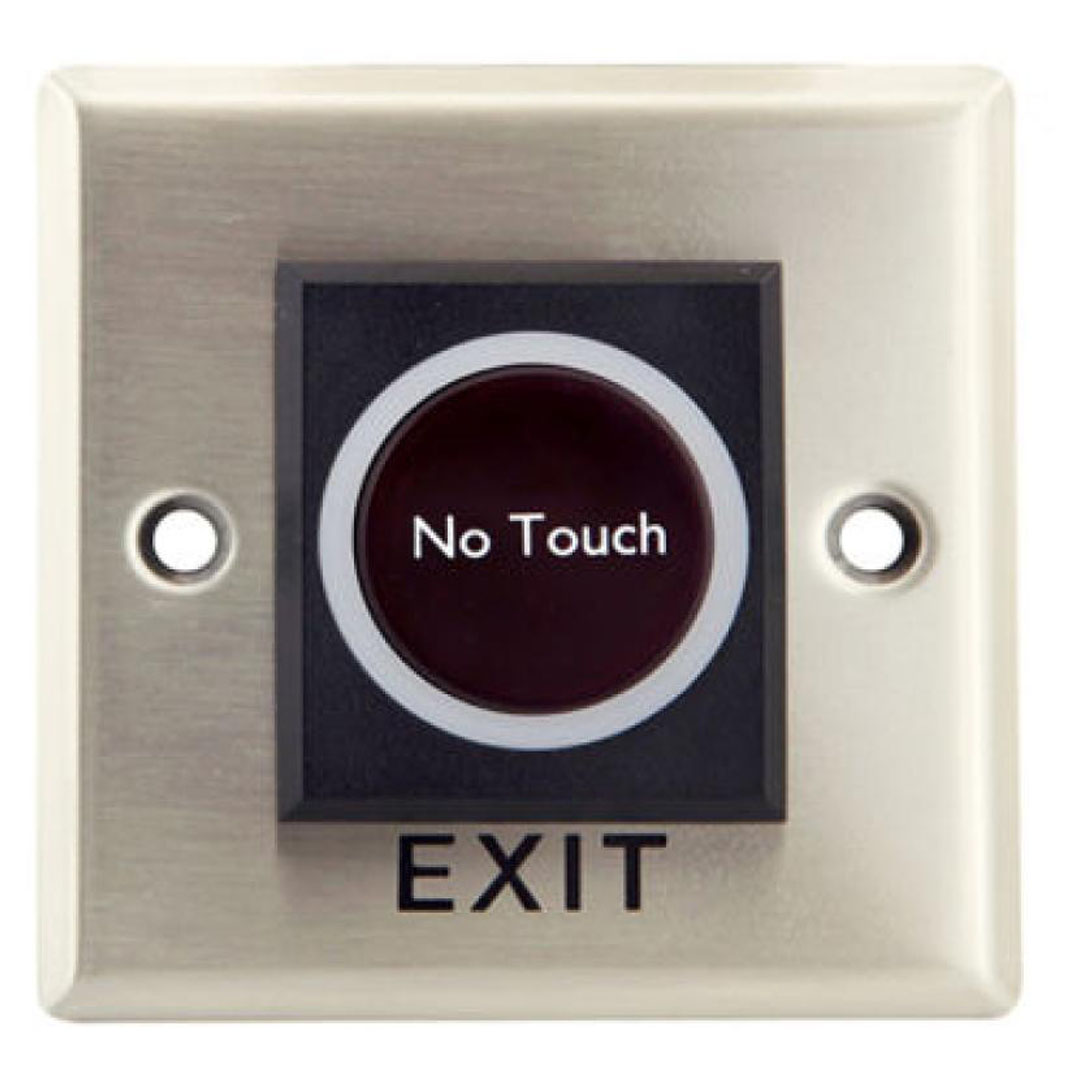

This no-touch infrared door release exit button offers a hygienic, hands-free solution for access control systems. Constructed from 304 stainless steel and powered by DC 12V, it is well suited for offices, facilities, and commercial buildings across Jordan that require reliable, contactless door release.
Key Features
Touchless / touch-free exit sensor using diffused detection technology.
304 stainless steel plate construction for durability.
Detection range of 0.1 to 10 cm for responsive, precise activation.
Output contact supports NO, NC, and COM configurations for flexible installation.
Three-colour LED indicator: white (power off), blue (power on / standby), red (power on / sensation active).
Operating temperature range of 10°C to +55°C (14–131°F).
Operating humidity up to 95% (non-condensing).
Technical Specifications
Input Voltage: DC 12V
Contact Rating: 12–28V, 3A
Output Contact: NO / NC / COM
Material: 304 Stainless Steel Plate
Detection Range: 0.1 – 10 cm
Operating Temperature: 10°C to +55°C (14–131°F)
Operating Humidity: 0–95% (non-condensing)
ZDBT-802 Size: 86L × 86W × 29H mm, Weight: 0.18 kg
ZDBT-802B Size: 115L × 70W × 39H mm, Weight: 0.18 g
