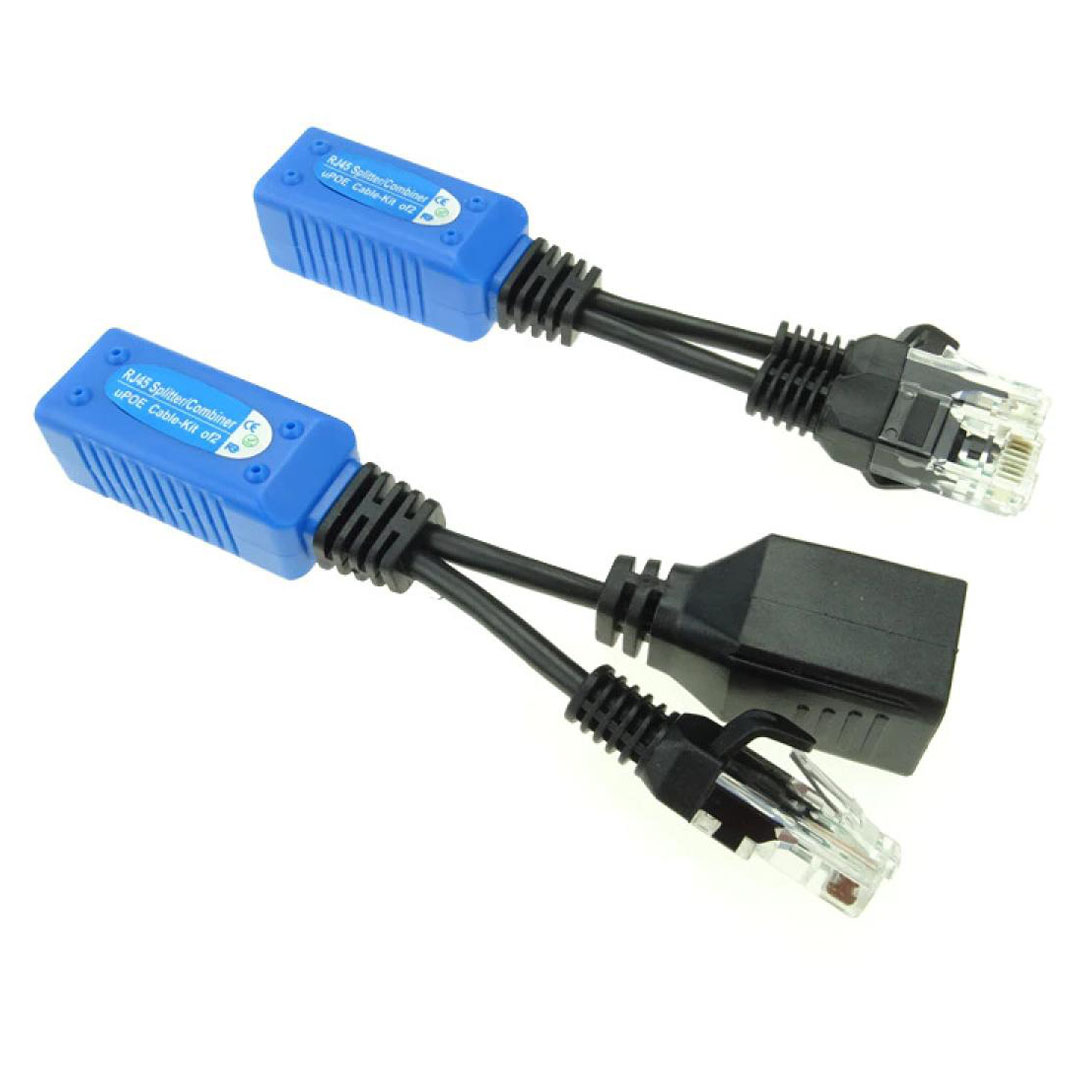

RJ45 Splitter/Combiner uPoE Cable Kit (Pack of 2) – Cat5e/6, 48V Output, Up to 57V Input

The RJ45 Splitter/Combiner uPoE Cable Kit enables two PoE cameras to share a single Cat5e/6 cable run, making it a practical solution for security and surveillance setups in offices and commercial premises throughout Jordan. The kit comes as a pack of two units and works with standard PoE switches or injectors.

Key Features

• Transmits two PoE cameras simultaneously over one Cat5e/6 cable.
• Compatible with PoE switch or injector power sources.
• Outputs 48V at 0.5A to connected devices.
• Accepts input voltage up to a maximum of 57V.
• Female RJ45 connector: 8 wires, 4-pair, 10/100 split.
• Male RJ45 connector: 4 wires, 2-pair, 10/100 split using pins 1&2 and 3&6.
• Pack of 2 units included in the kit.

Technical Specifications

• Output: 48V, 0.5A
• Input Voltage Max: up to 57V
• Input Current at 48V: 65mA per pair — 60 Watts total
• Connector (Input): Female RJ45 — 8 wires, 4-pair, 10/100
• Connector (Output): Male RJ45 — 4 wires, 2-pair, 10/100 (pins 1&2 and 3&6)
• Compatible Cable: Cat5e / Cat6
• Operating Temperature: 0°C – 50°C
• Cable Length: 125mm
