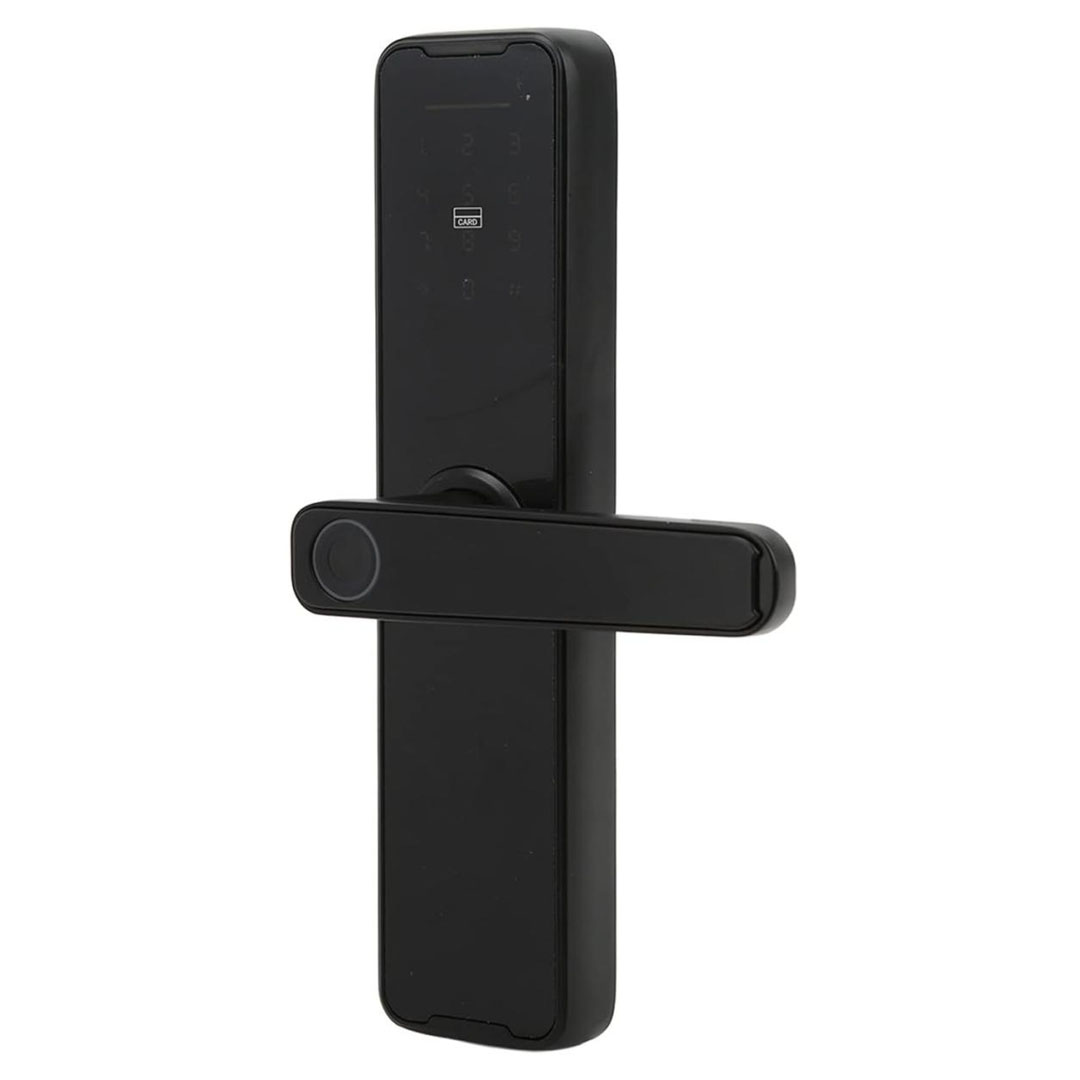

WIFI Intelligent Fingerprint Door Lock with TUYA App – 110 Fingerprints, 300 User Capacity, Semiconductor Scanner

The WIFI Intelligent Fingerprint Door Lock with TUYA App delivers multi-method access control through fingerprint, password, and card recognition, all manageable remotely via the TUYA app. With a semiconductor scanner offering 360° fingerprint identification and a false recognition rate of ≤0.0001%, it is a practical access control solution for offices and businesses in Jordan.

Key Features

• TUYA app integration for remote WiFi-based door management.
• Semiconductor fingerprint scanner with 360° identification angle and contrast time of ≤0.6 seconds.
• Supports up to 110 fingerprints and a combined capacity of 300 users (fingerprint + password + card).
• Touch standard 12-bit keyboard with password length of 6–8 bits and phantom password support up to 16 bits.
• Human voice prompts for user guidance during operation.
• Low voltage alarm at 4.8±0.2V and emergency powering via 5VDC.
• Wide operating range: -25°C to 60°C and 20%–90% relative humidity.
• Up to 9 administrator accounts for access management.

Technical Specifications

• Quiescent Current: ≤50uA
• Dynamic Current: ≤180mA
• Administrators Number: 9
• Fingerprint Capacity: 110
• Fingerprint + Password + Card Capacity: 300
• Fingerprint Scanner Type: Semiconductor
• Fingerprint Contrast Time: ≤0.6 Second
• Fingerprint Identification Angle: 360°
• False Rejection Rate: ≤0.1%
• False Recognition Rate: ≤0.0001%
• Reaction Time: ≤0.1 Second
• Power Type: 6V
• Emergency Powering: 5VDC
• Working Temperature: -25°C to 60°C
• Working Relative Humidity: 20%–90% RH
• Keyboard: Touch Standard 12-bit
• Password Length: 6–8 bits
• Phantom Password: 16 bits
• Low Voltage Alarm: 4.8±0.2V
• Human Voice: Yes
