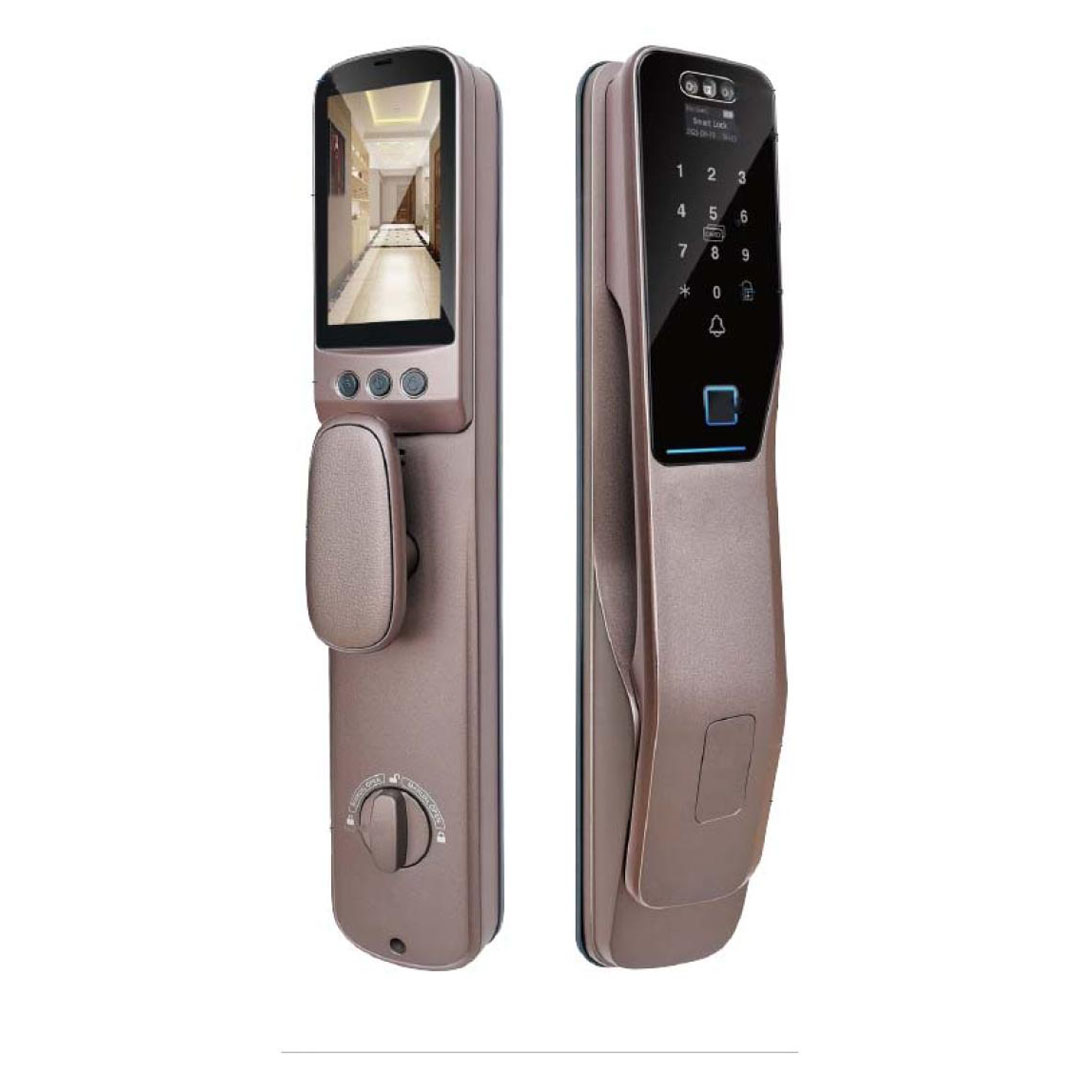

3D Facial Recognition Smart Door Lock – 295 Users, Fingerprint/Card/Password/Face, Wireless

The GY-H1-B-3D is an intelligent wireless smart door lock combining 3D facial recognition with multiple access methods — fingerprint, card, password, and face — to deliver flexible, secure entry management. Suitable for offices and facilities across Jordan, it supports up to 295 ordinary users and offers a range of configurable motor and unlocking options.

Key Features

• Four unlock methods: fingerprint, card, password, and 3D facial recognition.
• Stores up to 295 ordinary users across all unlock methods.
• One-click locking supported on both front and rear panels; one-click unlocking on the rear panel.
• Built-in doorbell support for added convenience.
• USB emergency interface (requires rechargeable battery).
• Compatible card types: Mifare-1 and ISO/IEC 14443-A.
• Configurable motor direction, rotation angle, and unlocking holding time.
• Low-battery alarm triggers at 7.2V to alert users before power runs out.

Technical Specifications

• Operating Voltage: 7.0V – 8.4V
• Alarm Voltage: 7.2V
• Dormant Static Current: < 80uA (lock plate only, without module)
• Motor Stall Current Range: 2.5A – 4.5A (battery current must exceed 5A)
• Emergency Interface: USB (rechargeable battery required)
• Number of Ordinary Users: 295 (Fingerprint / Card / Password / Face)
• Motor Direction: Switchable
• Motor Rotation Angle: Configurable
• Unlocking Holding Time: Configurable
• Compatible Card Types: Mifare-1 and ISO/IEC 14443-A
• Doorbell: Supported
• One-Click Locking (Front Panel): Supported
• One-Click Locking (Rear Panel): Supported
• One-Click Unlocking (Rear Panel): Supported
