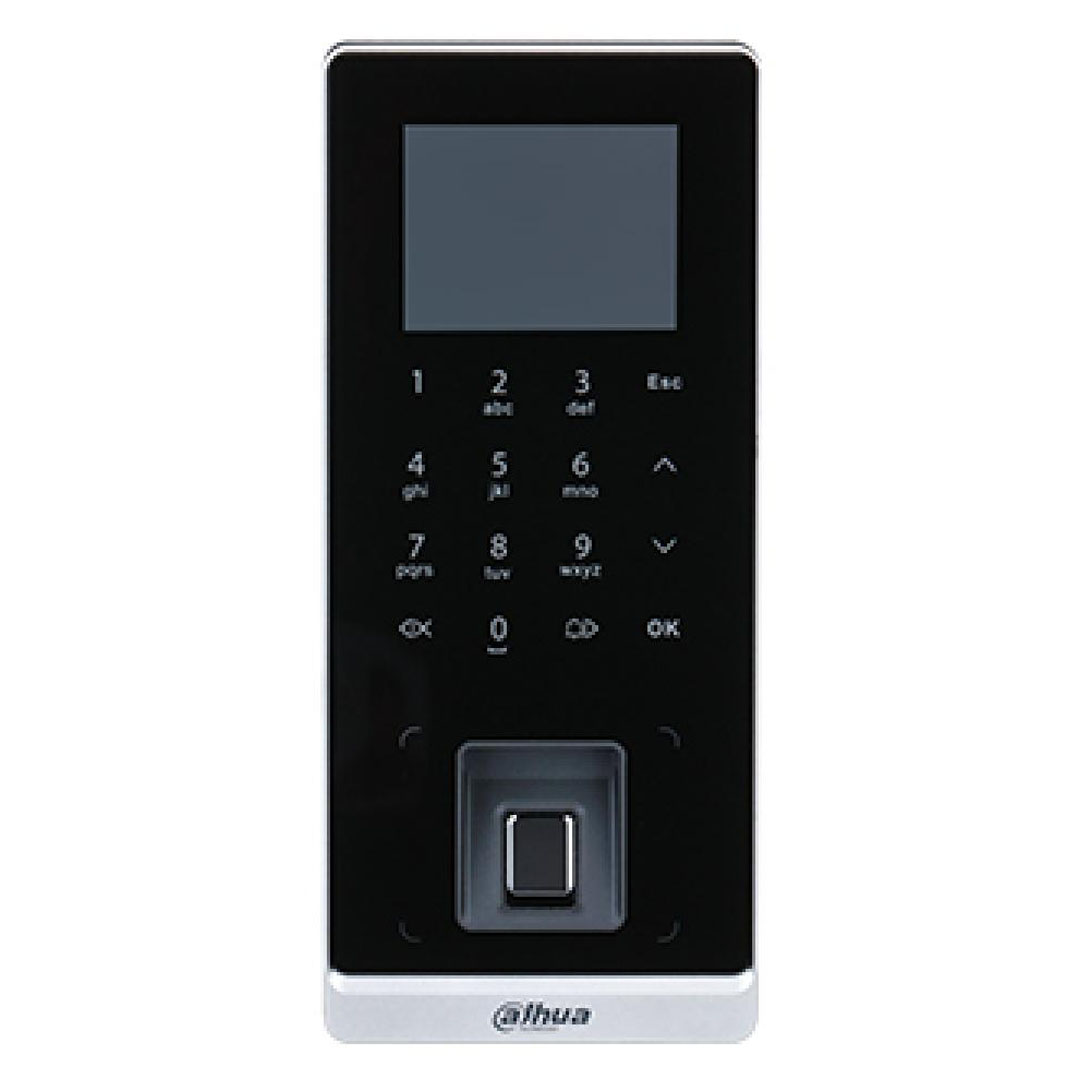

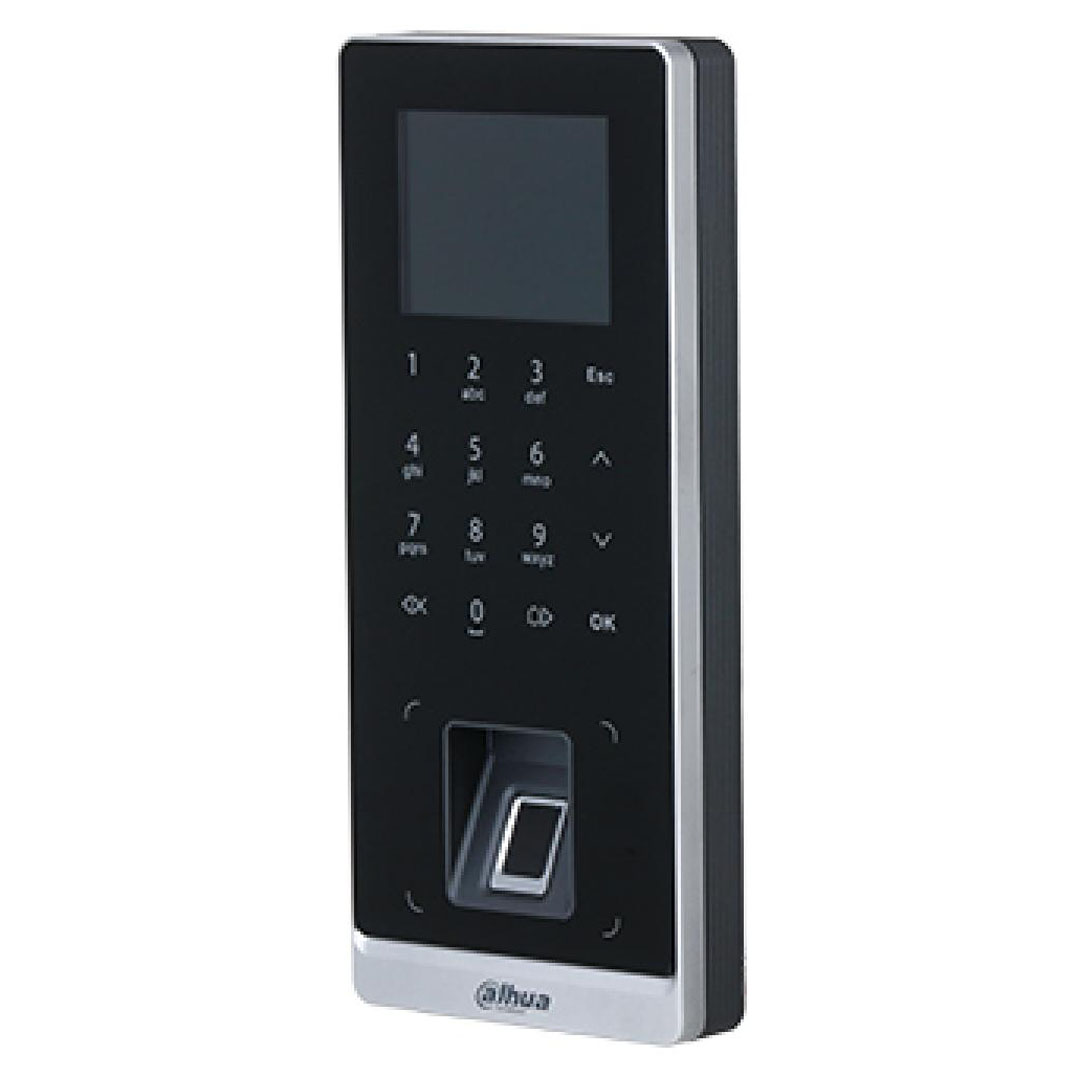

The Dahua ASI2212H-DW Access Standalone delivers flexible, high-capacity access control for offices and facilities in Jordan. With a slim, elegant design and a 2.4″ LCD screen, it operates reliably across a wide temperature range of –30 °C to +65 °C, making it suitable for demanding indoor and outdoor environments.
Key Features
Supports 30,000 users, 30,000 cards, 3,000 fingerprints, 30,000 passwords, 50 admin accounts, and up to 150,000 records.
Deep learning algorithm reduces capacitive fingerprint recognition time to less than 1 second.
Multiple unlock methods: card, fingerprint, password, remote, and combinations of these.
IP65-rated enclosure (PC + ABS) suitable for indoor and outdoor use — silicone sealant required; see Quick Start Guide.
Comprehensive alarm support including duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, illegal card/password threshold alarms, and external alarm.
Flexible user types: guest, patrol, blocklist, VIP, general users, and more.
Switchable between reader mode and controller mode for added installation flexibility.
TCP/IP and Wi-Fi communication with auto registration, P2P registration, and DHCP; supports PC and mobile web client, online update, and USB update.
Compatible with SmartPSS-AC and DSS Pro; supports IC card, ID card, and NFC technology.
Additional features include doorbell function, audio prompts, and access control security module expansion to prevent tampering.
Technical Specifications
Display: 2.4″ LCD, 240 × 320 resolution
Main Processor: High-performance embedded processor
Card Read Format: 125 KHz
Card Read Range: 0–5 cm (0″ to 1.97″)
Card Response Time: 1 second
Interface to PC: 1 × RJ-45, 100 Mbps
Interface to Reader: Wiegand, RS232, RS485
Power Supply: 12 V DC, 1 A
Operating Temperature: –30 °C to +65 °C (–22 °F to +149 °F)
