New
Access Control

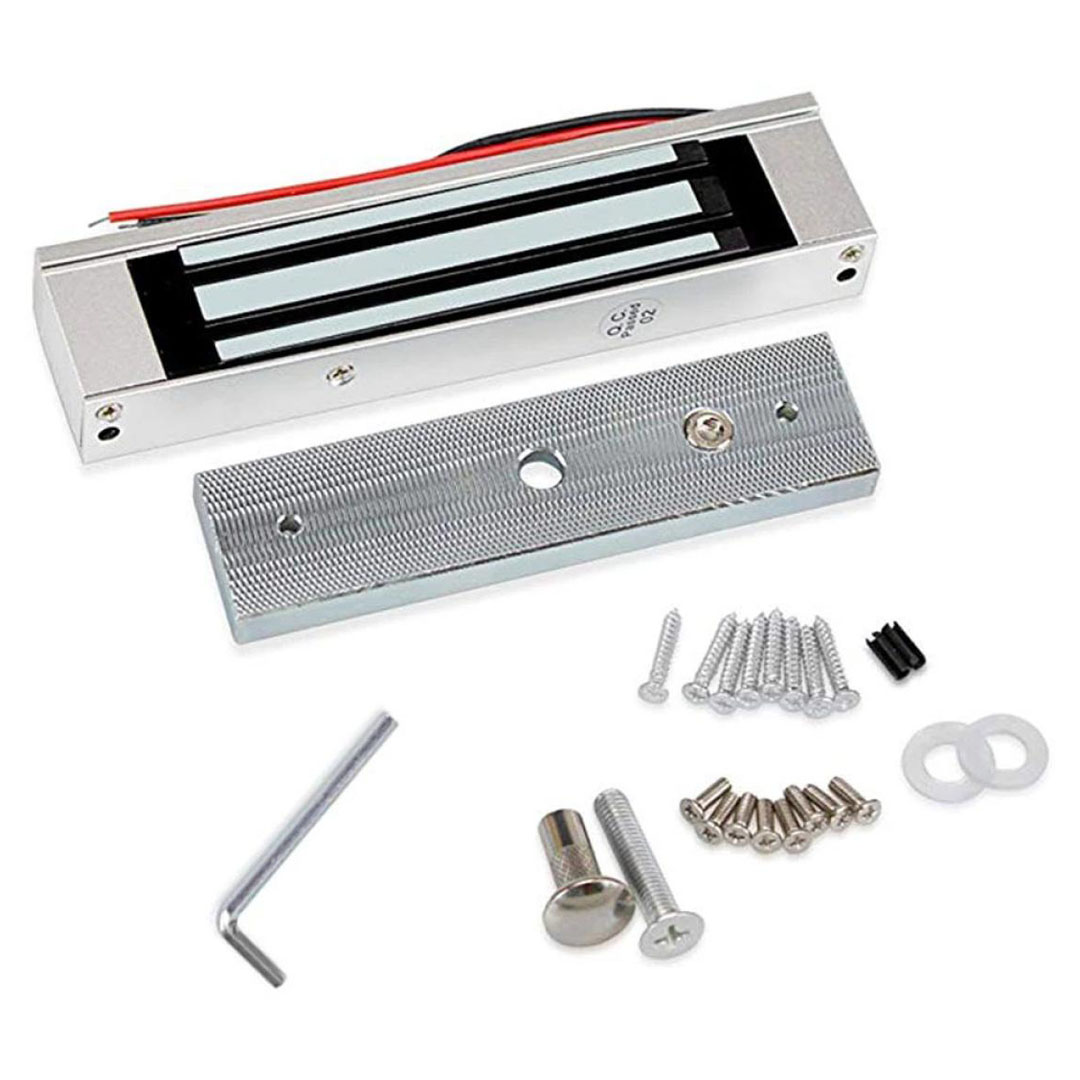

Electric Magnetic Lock 180kg – 12VDC, Anodized Aluminum, -10~55°C Operating Range
Online: Available
Store pickup: Not available
- Delivers a strong 180 kg (350 lb) holding force, suitable for securing wooden doors in offices across Jordan.
- Operates on 12VDC input at 120mA, making it compatible with standard access control power supplies.
- Built with an anodized aluminum cover and zinc lock finish for durability across a wide operating temperature range of -10 to 55°C.
📞 We call to confirm every order within 1 hour - confirmed before 1 PM may arrive same day · Closed Fridays
Genuine productCash on delivery
This Electric Magnetic Lock provides a reliable 180 kg (350 lb) holding force for door access control applications. Operating on 12VDC and finished in anodized aluminum and zinc, it is built to perform across a broad temperature range — well suited for office and commercial installations in Jordan.
Key Features
- 180 kg (350 lb) holding force for secure door locking.
- 12VDC input voltage at 120mA current draw.
- Anodized aluminum cover finish for durability and clean appearance.
- Zinc lock and motor plate finish for corrosion resistance.
- Suitable for wooden door installations.
- Wide operating temperature range: -10 to 55°C (14–131°F).
- Humidity tolerance: 0–90% (non-condensing).
- Compact and lightweight at 1 kg.
Technical Specifications
- Lock Size: 168L x 38W x 21H (mm)
- Motor Plate Dimensions: 128L x 31W x 11H (mm)
- Holding Force: 180 kg (350 lb)
- Input Voltage: 12VDC
- Current: 12V / 120mA
- Surface Temperature: 20°C
- Operating Temperature: -10 ~ 55°C (14–131°F)
- Humidity: 0–90% (non-condensing)
- Cover Finish: Anodized Aluminum
- Lock Finish: Zinc
- Motor Plate Finish: Zinc
- Weight: 1 kg
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
General
| Brand | No-Brand |
|---|---|
| Warranty | 1 Year |
