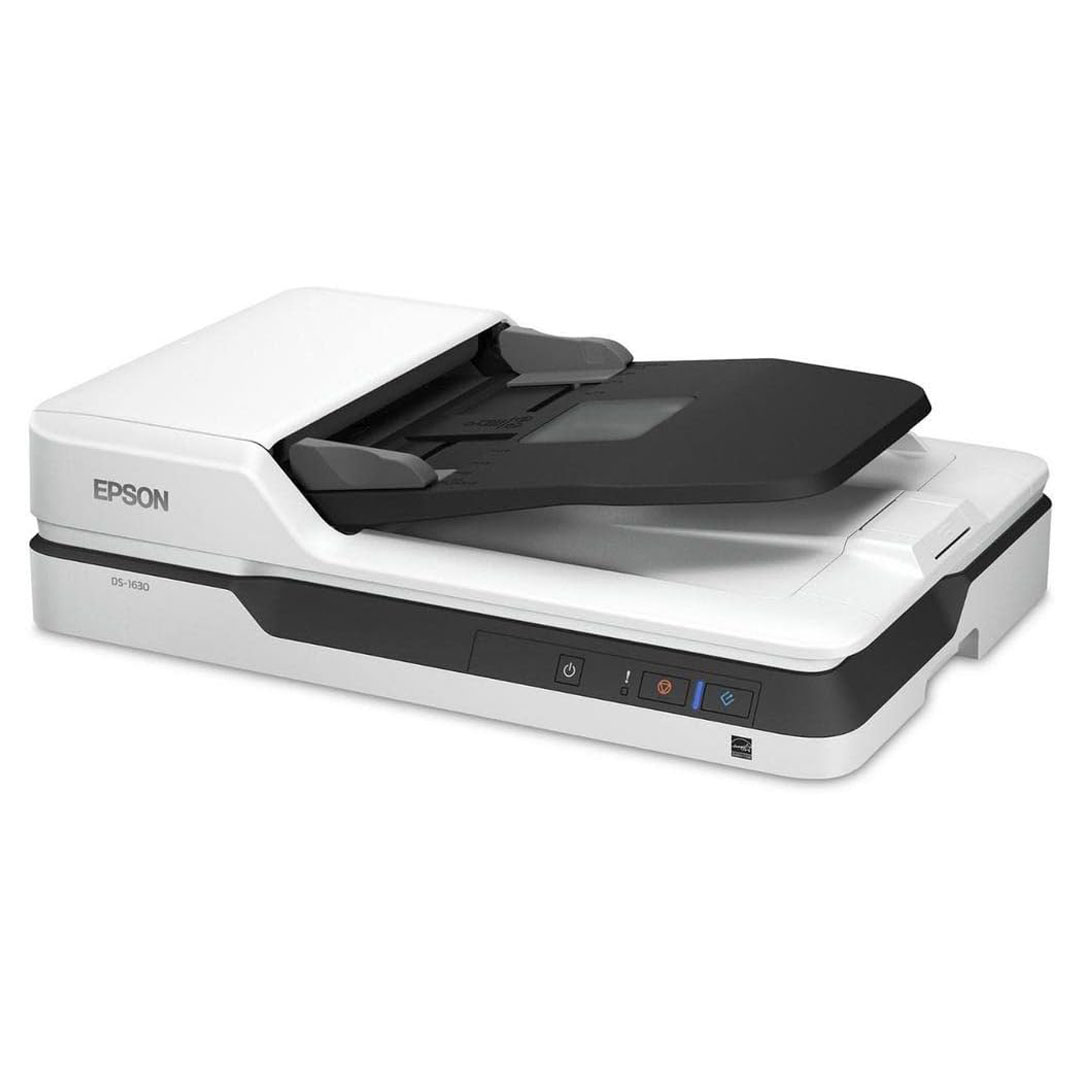

Epson DS-1630 Flatbed Color Document Scanner with ADF

The Epson DS-1630 is designed to streamline office workflows with a combination of flatbed and automatic document feeder (ADF) scanning. Capable of up to 25 ppm with duplex support, this scanner is ideal for stacks of documents, IDs, passports, and fragile items. With TWAIN and ISIS drivers, it integrates easily with document management systems, while its included software and OCR capabilities enable editable Word, Excel, and searchable PDFs. Scan directly to PC, Mac, or cloud services like Dropbox, Google Drive, and SharePoint for maximum productivity.

Key Features

• Versatile Scanning: Flatbed and 50-page ADF for documents, IDs, and booklets.
• Fast Performance: Up to 25 ppm simplex, 10 ipm duplex.
• Duplex Scanning: Auto two-sided scanning via ADF.
• High Resolution: Flatbed 1200 √ó 1200 dpi; ADF 600 dpi.
• Seamless Integration: TWAIN and ISIS drivers for compatibility.
• OCR Software: Convert scans to editable Word, Excel, or searchable PDF.
• Cloud Ready: Scan to Dropbox¬Æ, Google Drive‚Ñ¢, SharePoint¬Æ, and more.
• Daily Duty Cycle: 1,500 sheets.
• Warranty: 1-year limited warranty with Advance Exchange.

Specifications

• Scanner Type: Flatbed color document scanner
• Optical Sensor: Contact Image Sensor (CIS)
• Light Source: 3-color LED technology
• Optical Resolution: Flatbed: 1200 dpi / ADF: 600 dpi
• Hardware Resolution: Flatbed: 1200 √ó 1200 dpi / ADF: 600 dpi
• Color Depth: 30-bit internal / 24-bit external
• Grayscale Depth: 8-bit
• Max Scan Area (Flatbed): 8.5″ √ó 11.7″
• Max Scan Area (ADF): 8.5″ √ó 14″
• ADF Capacity: 50 sheets
• ADF Document Size: Min: 3.5″ √ó 5″ / Max: 8.5″ √ó 14″
• Paper Weight (ADF): 50 ‚Äì 120 g/m¬≤
• Scan Speed: 25 ppm simplex / 10 ipm duplex (300 dpi)
• Daily Duty Cycle: 1,500 sheets
• Dimensions (W √ó D √ó H): 12.5″ √ó 17.7″ √ó 4.8″
• Weight: 9 lb (4.1 kg)

Scan Features

• Buttons: Power, Scan, Stop (3 buttons)
• Connectivity: SuperSpeed USB 3.0, optional Network Interface Unit (RJ-45, 10BaseT/100BaseTX)
• Minimum System Requirements: Windows 7/8/8.1/10, Mac OS X 10.6.8 ‚Äì 10.11.x (Internet connection required for software installation)

Software

• Included Software: Epson Scan, Document Capture Software

Power

• Rated Voltage: AC 100 ‚Äì 120V
• Power Consumption: Operating: 11 W / Ready: 5.8 W / Sleep: 0.8 W / Off: 0.15 W

Eco Features

• RoHS compliant
• Recyclable product
• SmartWay‚Ñ¢ Transport Partner

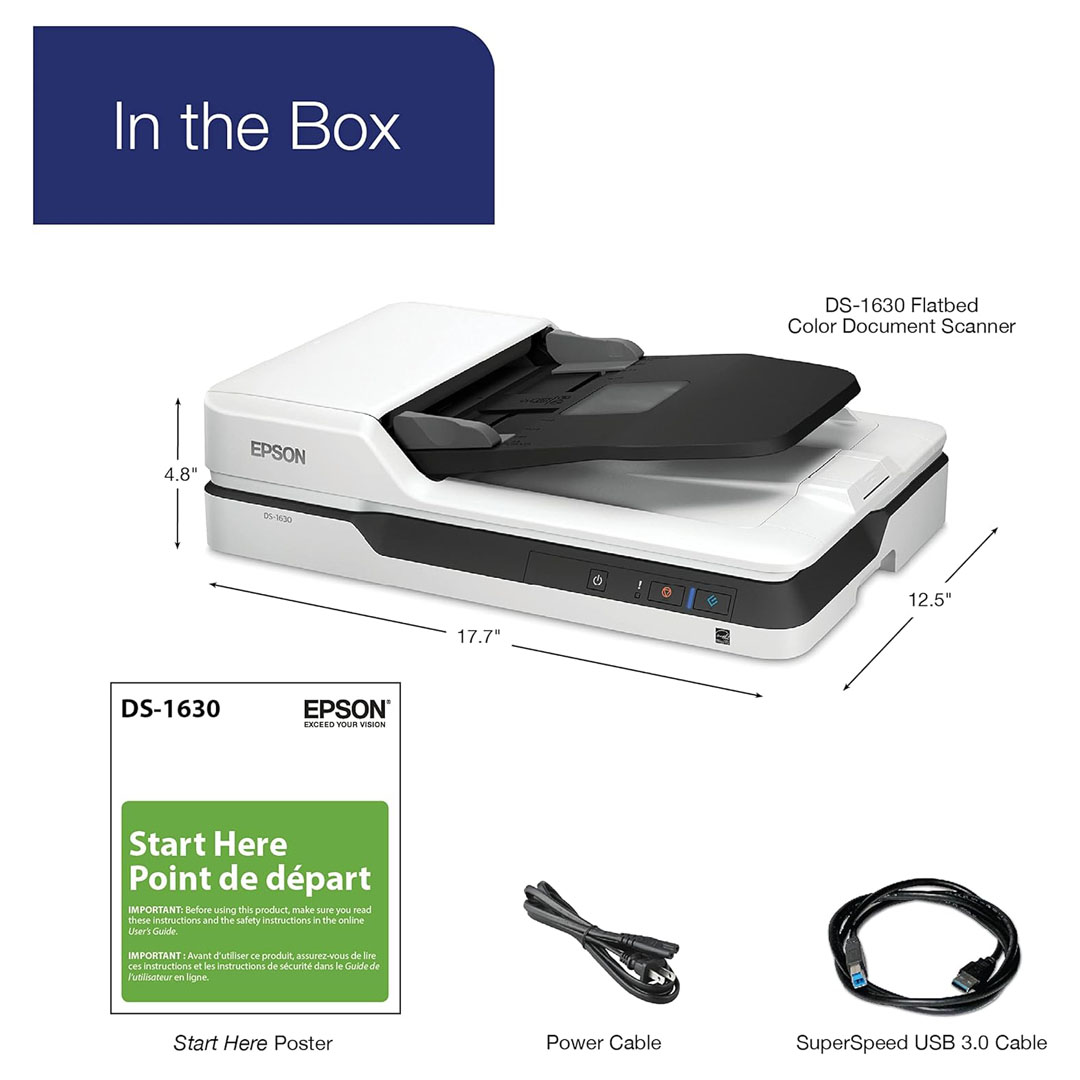

What’s in the Box?

• Epson DS-1630 Scanner
• Start Here poster
• SuperSpeed USB cable
• Power cable
• Warranty sheet
