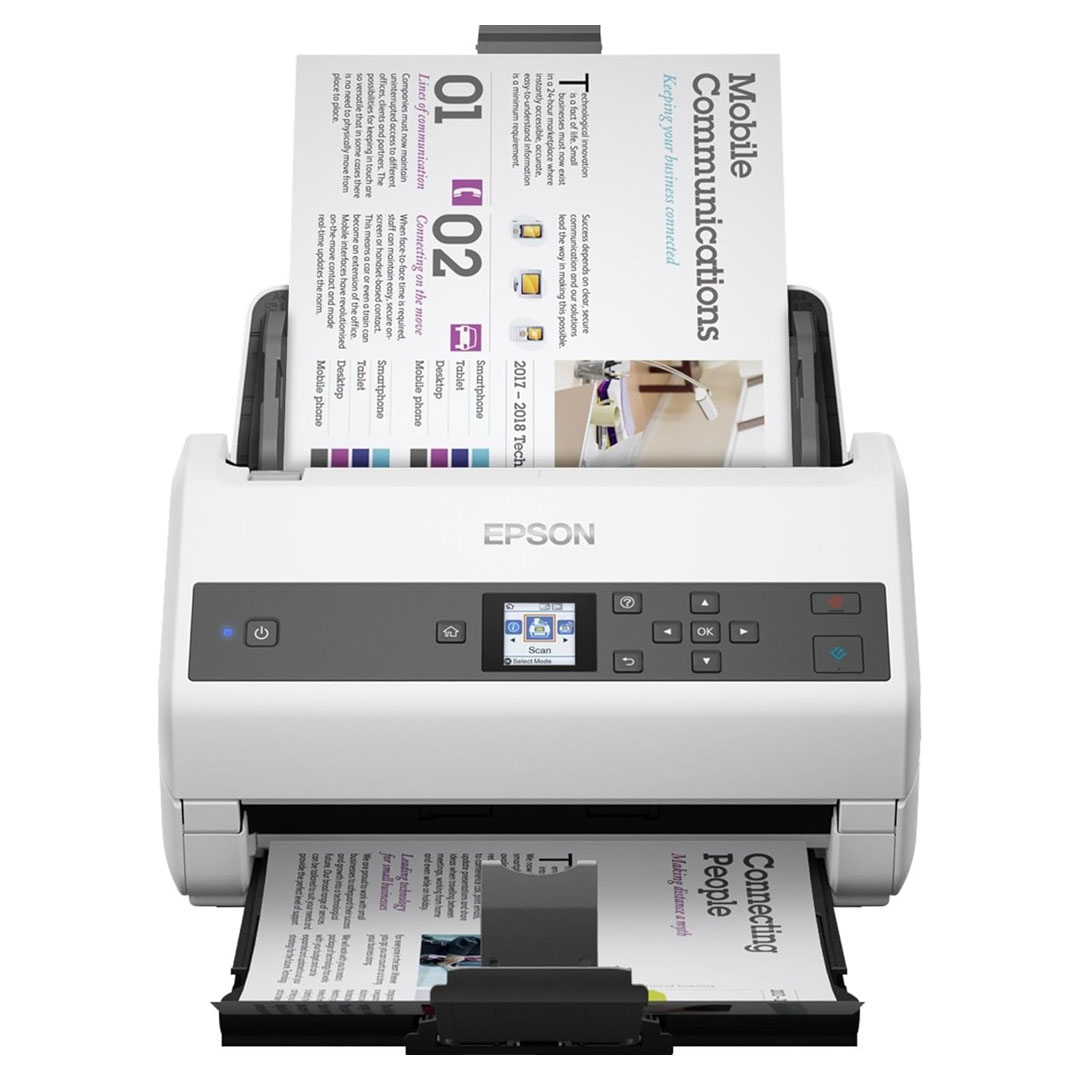

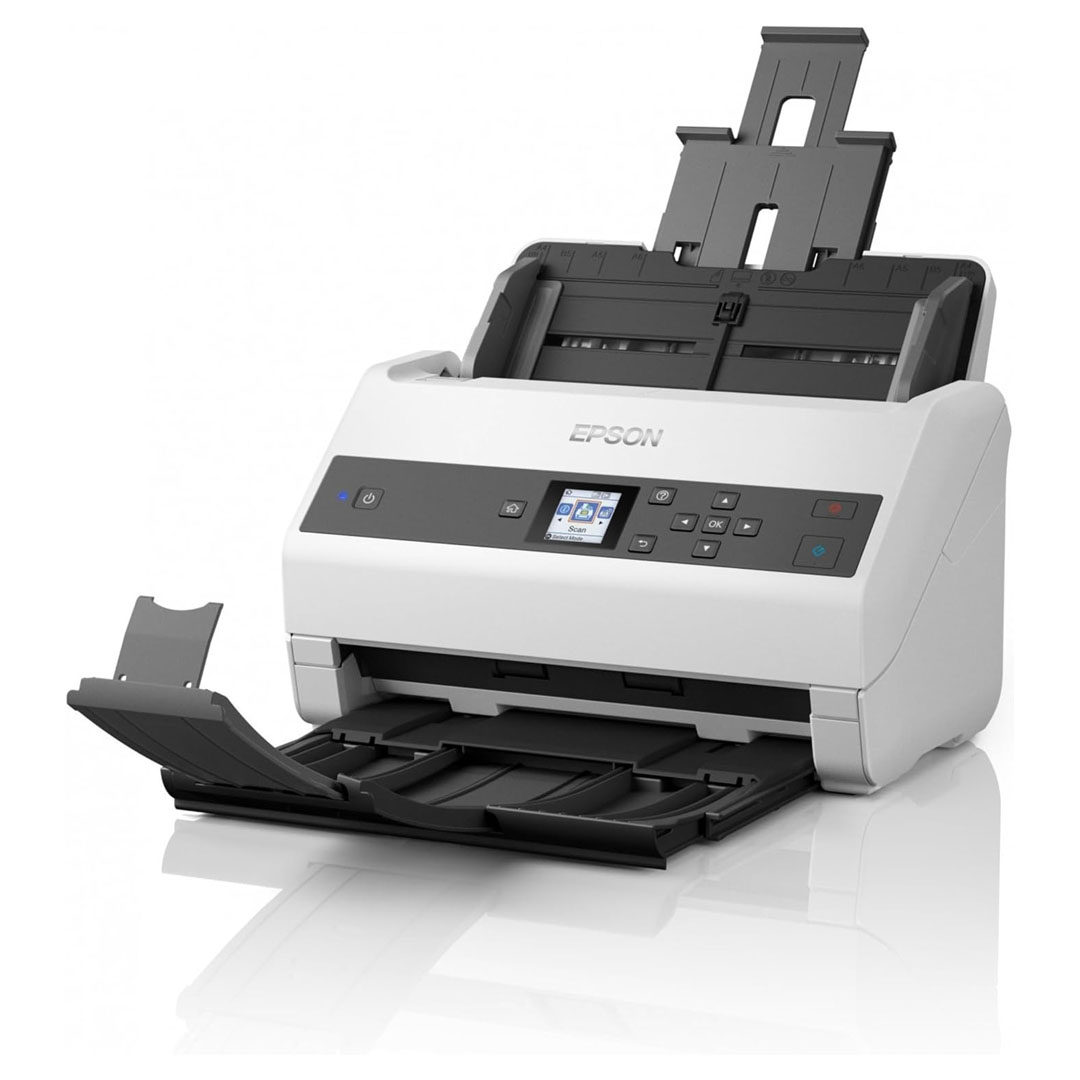

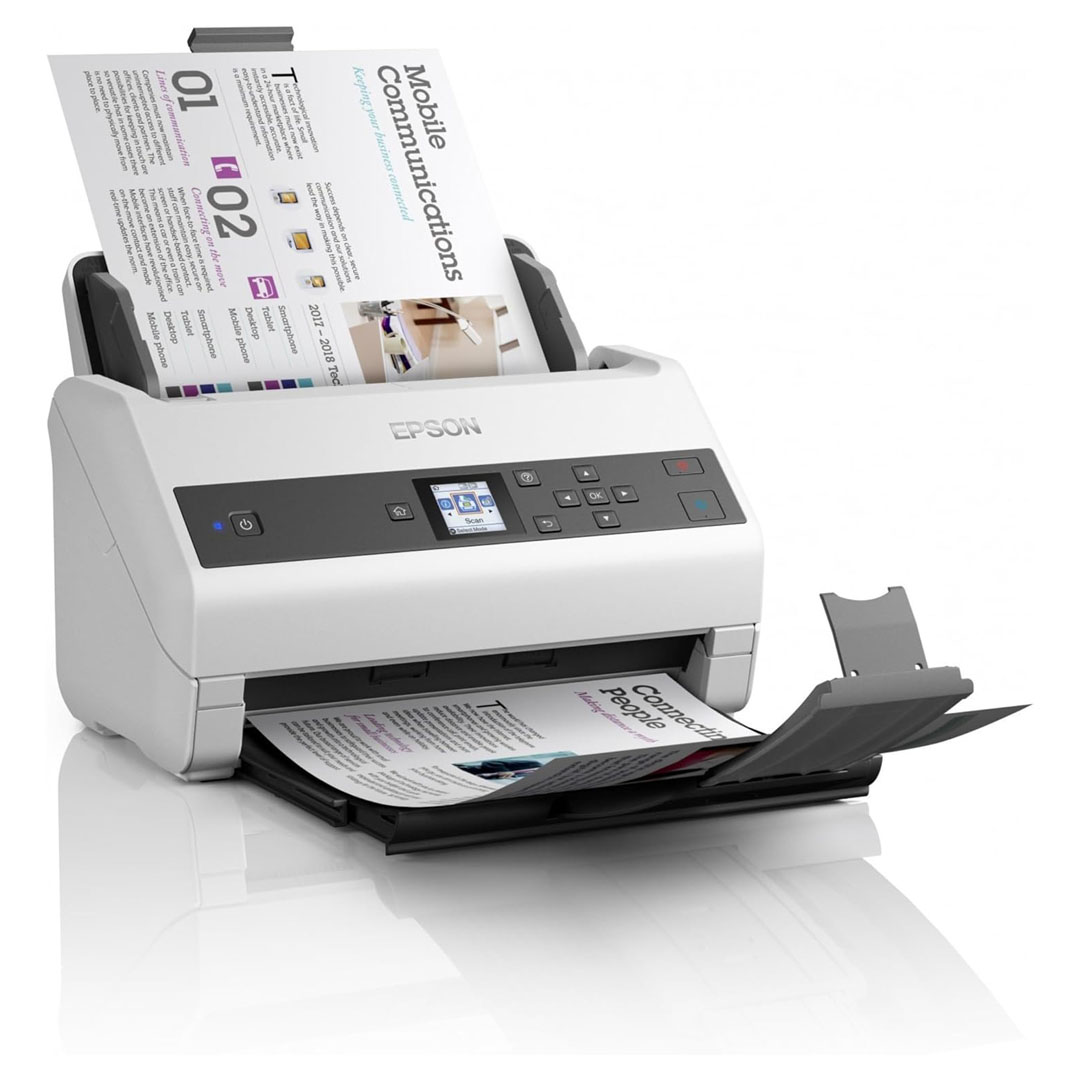

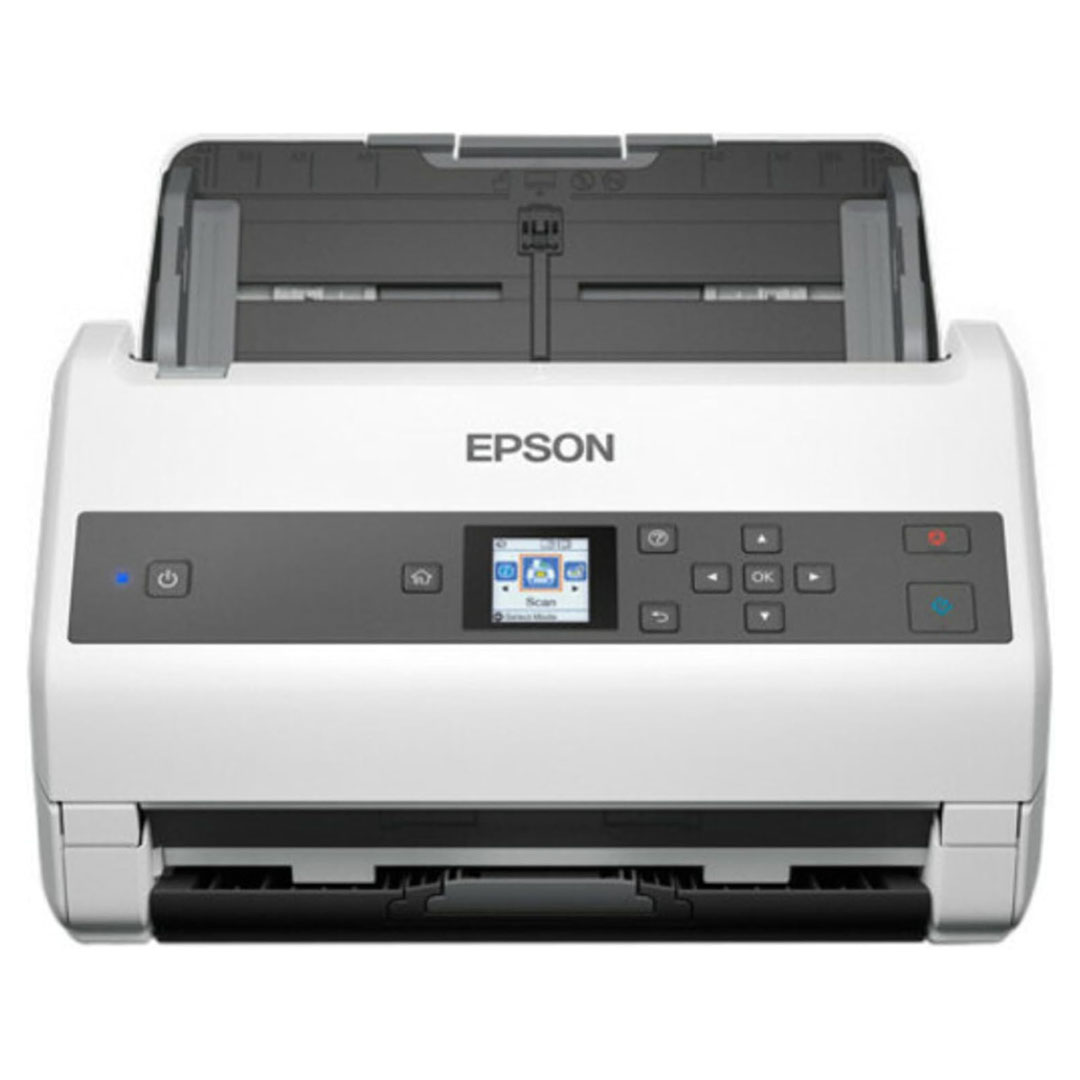

Epson DS-870 Color Duplex Workgroup Document Scanner

The Epson DS-870 is designed for high-volume, fast-paced environments where performance and reliability are critical. With blazing-fast speeds up to 65 ppm/130 ipm, a 100-page Automatic Document Feeder, and a peak daily duty cycle of up to 10,000 sheets, this scanner is perfect for busy offices. Backed by a 1-year limited warranty, the DS-870 ensures dependable operation. The included TWAIN and ISIS® drivers provide seamless integration, while its LCD display and buttons offer intuitive, quick access to scanning functions.

Key Features

• Fast Scanning: Up to 65 ppm / 130 ipm with single-pass duplex scanning.
• High Capacity: 100-page ADF with peak daily duty cycle of 10,000 sheets.
• Warranty: 1-year limited warranty.

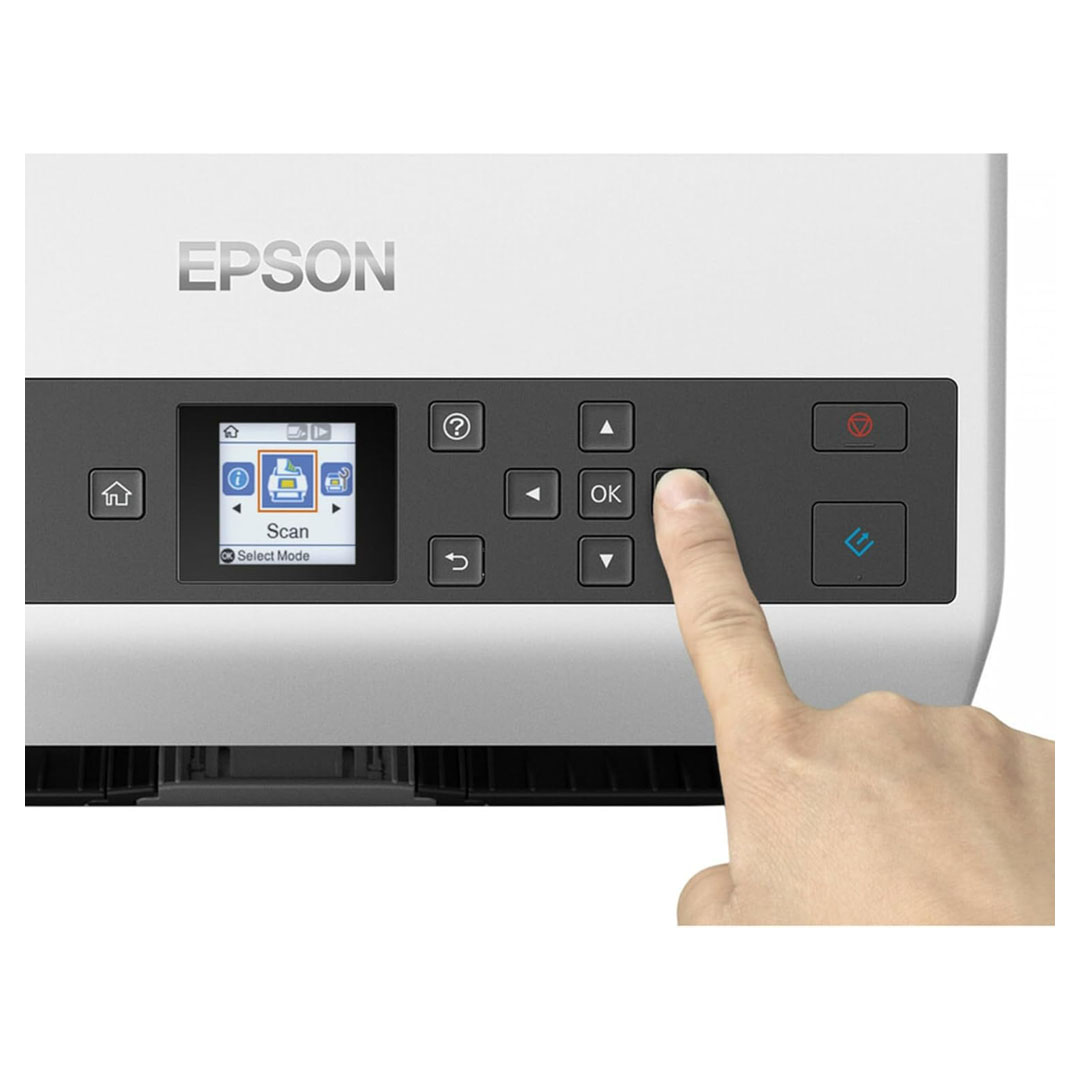

• User-Friendly: Color LCD display and buttons for quick operation.
• Paper Handling: Scan business cards, IDs, long pages (up to 240″), folded pages up to 11″ √ó 17″ with optional carrier sheet.
• Advanced Paper Protection: Slow Speed Mode, Double-Feed Detection, and Paper Protection features.
• Software with OCR: Create searchable PDFs, scan to SharePoint¬Æ, Google Drive‚Ñ¢, Evernote¬Æ, and more.
• PC and Mac Compatible: Supports Windows¬Æ 7/8/8.1/10/11 and macOS¬Æ 10.11.x ‚Äì 10.14.x.
• Optional Flatbed Dock: Connects with Epson photo scanner for passports, photos, or bound items.

Specifications

• Scanner Type: Sheet-fed, 1-pass duplex color scanner
• Sensor Type: Color CIS
• Optical Resolution: 600 dpi
• Output Resolution: 50 ‚Äì 1200 dpi
• Max Interpolation Resolution: 1200 dpi
• Effective Pixels: 5100 √ó 9300 pixels
• Color/Grayscale Depth: 30-bit internal / 24-bit external
• Monochrome Depth: 10-bit input / 1-bit output
• ADF Capacity: 100 sheets
• Paper Size: Min: 2″ √ó 2″ / Max: 8.5″ √ó 240″ (200 dpi), 8.5″ √ó 215″ (300 dpi)
• Paper Weight: 27 g/m¬≤ ‚Äì 413 g/m¬≤
• Card Thickness: Less than 1.24 mm (including embossed cards)
• Buttons: LCD with push buttons
• Light Source: 3-color RGB LED
• Interface: SuperSpeed USB 3.0
• Scan Speed: 65 ppm / 130 ipm (200 & 300 dpi, B/W, Color, Gray); 16 ppm / 32 ipm (400 & 600 dpi)
• Duty Cycle: Up to 10,000 sheets/day
• Reliability: Roller assembly kit: 200,000 pages

Environmental Conditions

• Operating Temperature: 5 ¬∞C ‚Äì 35 ¬∞C (41 ¬∞F ‚Äì 95 ¬∞F)
• Humidity: 15% ‚Äì 80% (no condensation)

Power

• Input Voltage: 100 ‚Äì 240 V AC
• Output: 24 V DC, 2 A
• Frequency: 50 ‚Äì 60 Hz
• Power Consumption: Operation: 30 W / Ready: 10 W / Sleep: 1.5 W / Off: 0.1 W

Dimensions & Weight

• Dimensions (W √ó D √ó H): 11.6″ √ó 8.3″ √ó 8.5″
• Weight: 7.9 lb (3.6 kg)

System Requirements

• Windows: 7, 8/8.1, 10, 11
• Mac: macOS 10.11.x ‚Äì 10.14.x
• Software Installation: Internet connection required

Other Features

• Rigid plastic ID card scanning (including embossed)
• Business card scanning
• Oversized folded documents with optional carrier sheet
• Ultrasonic Double-Feed Detection
• Kensington security lock support

Software Included

• Epson Scan 2
• Epson Document Capture
• Epson Document Capture Pro

Driver Support

• TWAIN
• ISIS

Eco Features

• RoHS compliant
• Recyclable product
• SmartWay¬Æ Transport Partner

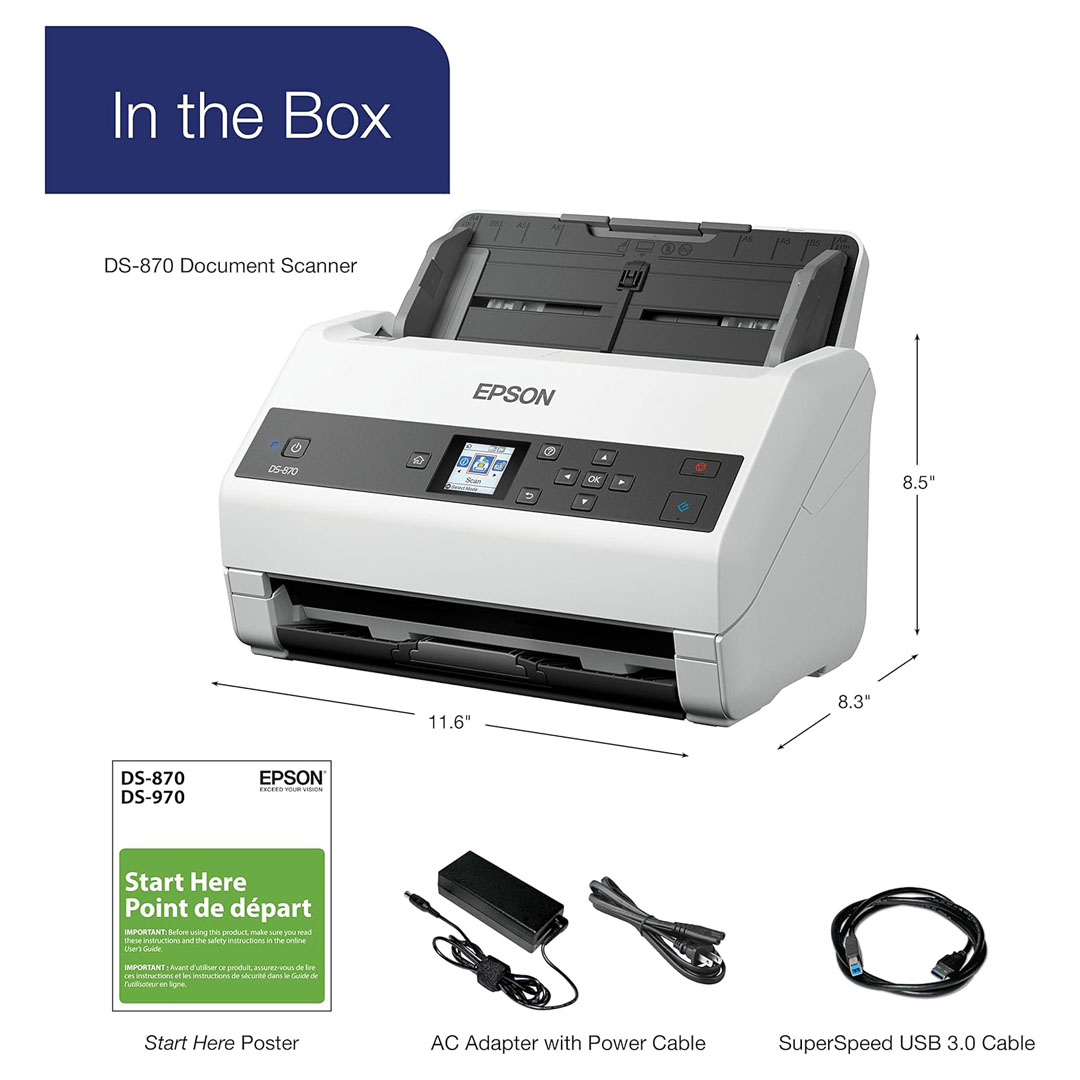

What’s in the Box?

• Epson DS-870 Scanner
• Start Here poster
• SuperSpeed USB 3.0 cable
• AC adapter with power cable
