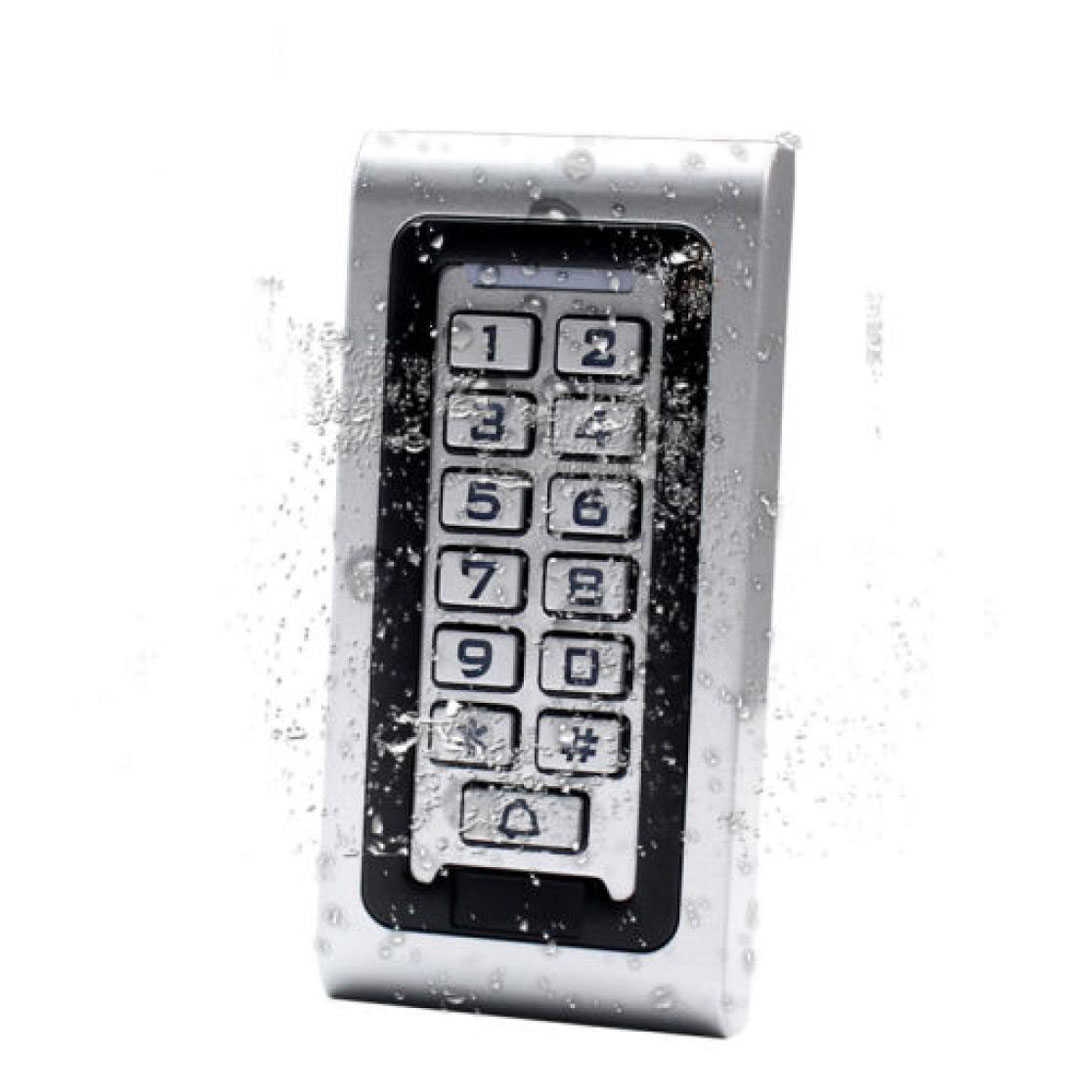

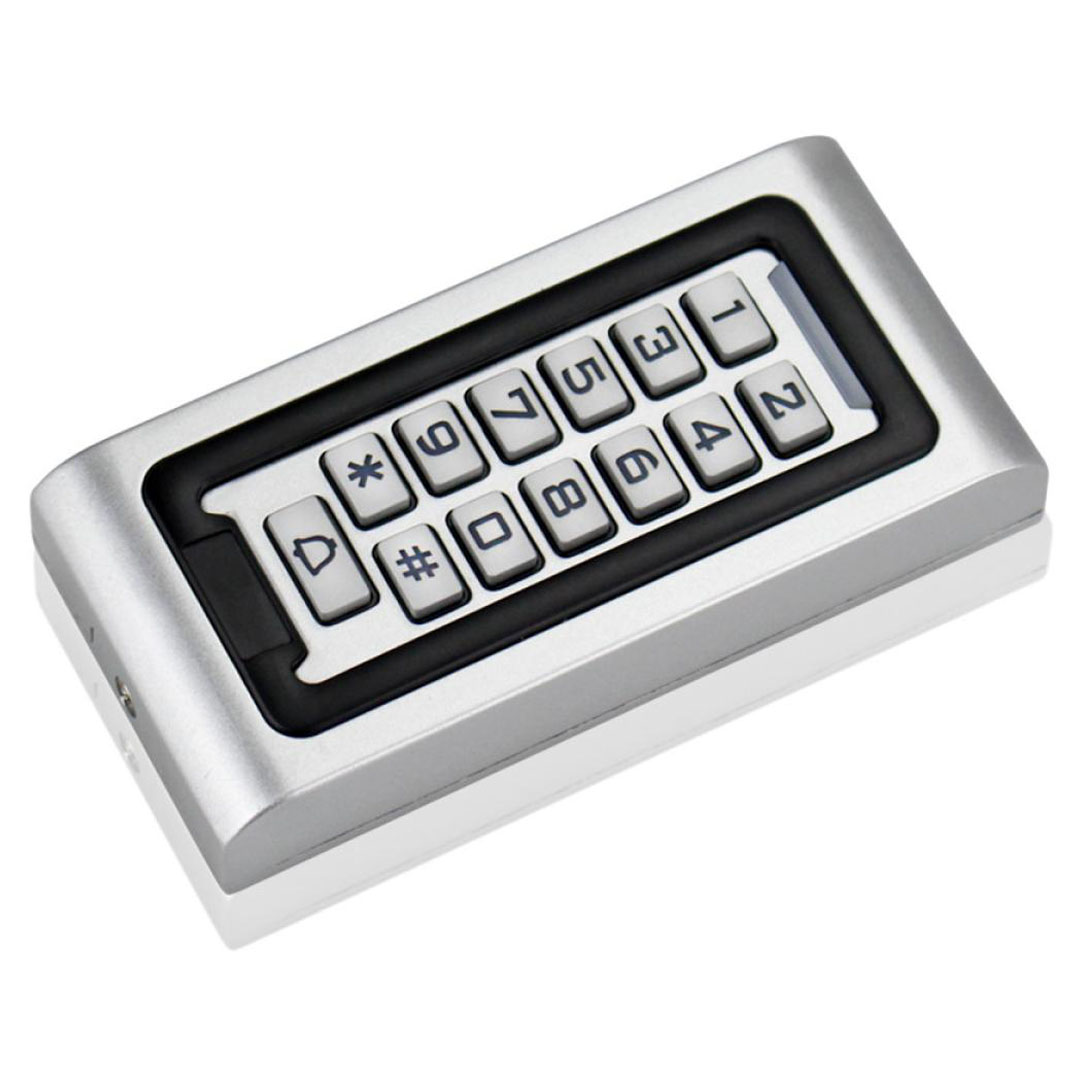

S601 Metal Outdoor Waterproof RFID Keypad – 2000 Users, DC9-28V, Adjustable Open-Door Time

The S601 Metal Outdoor Waterproof RFID Keypad delivers dependable access control for offices, warehouses, and facilities across Jordan. Built for outdoor installation, it combines RFID card reading with keypad entry, supporting up to 2000 users and operating across a wide voltage and temperature range.

Key Features

• Metal construction designed for outdoor, weatherproof deployment.
• Dual-method access via RFID card (3–8 cm reading range) and PIN keypad.
• Stores up to 2000 users for scalable access management.
• Adjustable open-door time from 0 to 99 seconds to suit different entry requirements.
• Wide operating voltage range: DC 9–28V for flexible installation.
• Rated for environments from -25°C to 60°C and 10%–90% humidity.
• Electric lock output up to 3A with alarm output up to 20A.
• Output short-circuit protection response time of ≤100μS for added safety.

Technical Specifications

• Size: 120 × 56 × 18 mm
• Work Voltage: DC 9–28V
• Static Current: ≤30 mA
• Reading Range: 3–8 cm
• User Capacity: 2000 users
• Environment Temperature: -25°C to 60°C
• Environment Humidity: 10%–90%
• Electric Lock Output: ≤3A
• Alarm Output: ≤20A
• Output Short-Circuit Protection Time: ≤100μS
• Open-Door Time: 0–99 seconds (adjustable)
